(Chi-fi IEM Review) TinHiFi C5: Mellow neutral sound with impressive mild midrange over deep, heavy bass

TinHiFi C5

TinHiFi C5





Disclaimer

  • This review is based on a sample provided by Linsoul to convey a sincere quality review to our readers.
  • No remuneration or compensation, such as a manuscript fee, has been received for publishing this, and it is an honest evaluation based on measurement data from personal testing and personal opinion.
  • Please read the privacy policy of this website.



Linsoul



  • People who like deep low frequencies
  • People who value sound balance
  • People who like a mellow, mild sound



Overview of TinHiFi C5

This review will give an overview of TinHiFi C5.



A complete review of this product can be found here.





audio-sound Score

  • Total Score: 8.9 / 10.0
  • Package: 8.0 / 10.0
  • Build quality: 8.5 / 10.0
  • Fitment: 8.5 / 10.0
  • High range: 8.0 / 10.0
  • Mid range: 9.5 / 10.0
  • Low range: 10.0 / 10.0
  • Less distortion: 8.0 / 10.0
  • Cost performance bonus: 10.5 / 10.0



  • Want to see the score ranking? Click here!



Basic Specifications
  • Frequency response: 10Hz to 20kHz
  • Impedance: 9Ω±15%
  • Sensitivity: 101±3dB@1kHz 0.126V
  • Cable connector: 0.78mm 2pin



Features of TinHiFi C5

  • Light-weight Ergonomics Design
  • The Harman Target Curve of According Audiophile Target
  • HIFI Grade Silver Plated Copper Cable

blog.ear-phone-review.com



Planar & Balanced Armature Drivers

C5 comes with a newly-developed ultra-thin diaphragm planar driver and balanced armature driver units. Planar drivers are famous for their ultra-low distortion and fast transients. As the same can be expected here from the latest C5. The high-performance balanced armature driver units for the high and ultra-high frequency bands. They produce transparent high-frequency responses with excellent resolution and clarity. The excellent BA drivers can bring out the minutest details from your music.



TINHIFI C5



Light-weight Ergonomics Design

TINHIFI C5 adopts 3D-printing technology, capturing the contour of the ear canal and the shape of the outer ear accurately through a computer model simulation database of the human ears. It not only fits the human ears canal perfectly but also maintains a certain physical sound insulation ability, which makes it very comfortable to wear.



TINHIFI C5



The Harman Target Curve of According Audiophile Target

TINHIFI C5 is tuned according to Harman Target and the opinions of senior audiophiles, which makes it have the right extension from low-frequency to a high-frequency, full intermediate frequency, and rich layers.



TINHIFI C5

TINHIFI C5
TINHIFI C5

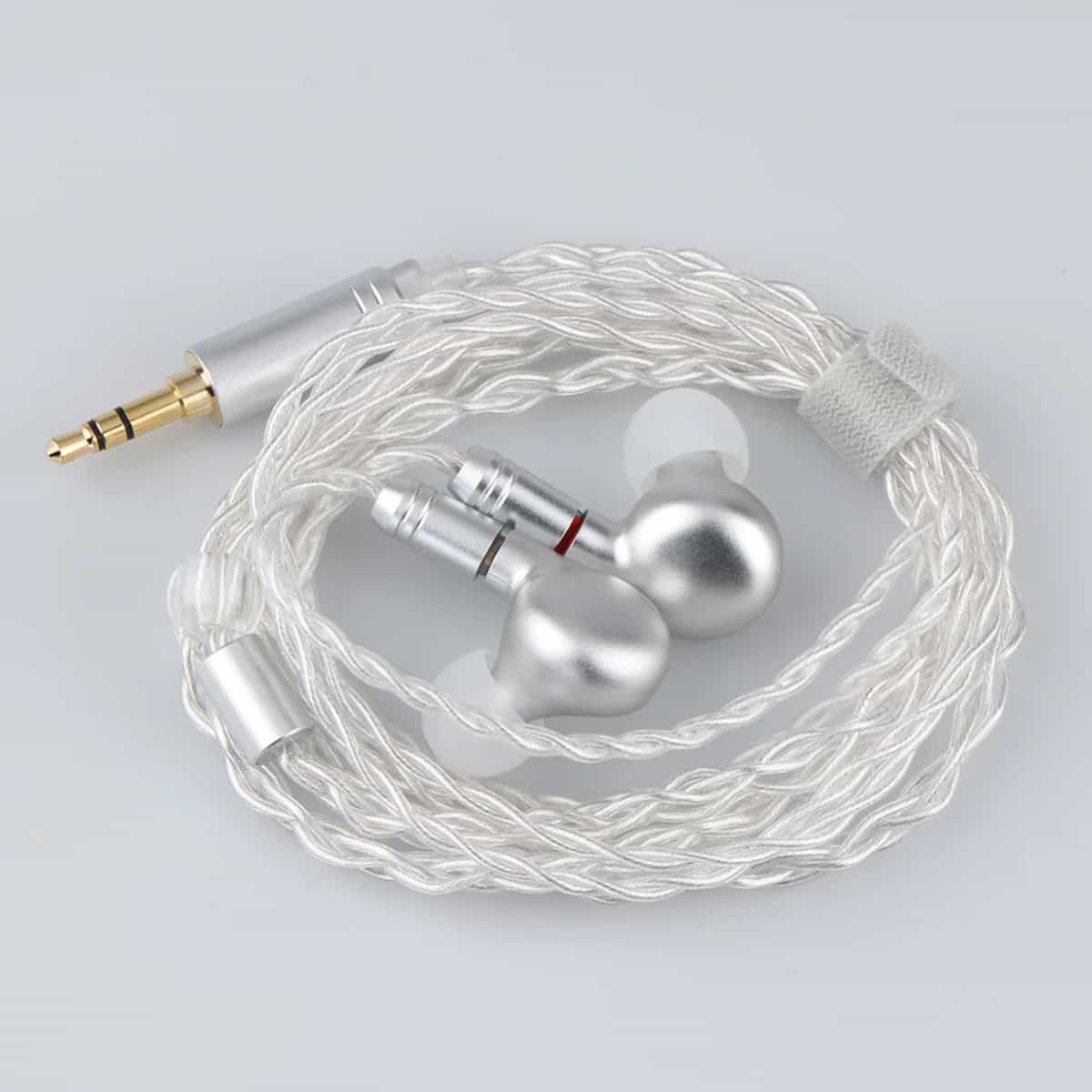

HIFI Grade Silver Plated Cable

Using a high-quality silver-plated Copper cable, the sound is transparent and clean. For a 2-Pin interchangeable cable design, you can replace other earphone cables to get a more sound quality experience.



TINHIFI C5
TINHIFI C5





package

The package meets the price standard.



Package contents
  • TinHiFi C5
  • Eartips
  • Manuals
  • Carrying pouch



TinHiFi C5

TinHiFi C5

TinHiFi C5

TinHiFi C5TinHiFi C5

TinHiFi C5

TinHiFi C5

TinHiFi C5

TinHiFi C5

TinHiFi C5

TinHiFi C5

TinHiFi C5

TinHiFi C5

TinHiFi C5

TinHiFi C5

TinHiFi C5

TinHiFi C5



Build quality

Build quality meets the price standard.



TinHiFi C5

TinHiFi C5

TinHiFi C5

TinHiFi C5

TinHiFi C5

TinHiFi C5

TinHiFi C5

TinHiFi C5

TinHiFi C5
TinHiFi C5
TinHiFi C5
TinHiFi C5

TinHiFi C5

TinHiFi C5

TinHiFi C5

TinHiFi C5

TinHiFi C5

TinHiFi C5



Fit

The fit is good.



TinHiFi C5

TinHiFi C5
TinHiFi C5
TinHiFi C5



Sound quality

REW Frequency Response

TinHiFi C5 Frequency Response (RAW)



audio status

TinHiFi C5のオーディオステータス



Sound quality description

In this review, I use the standard eartips size L and drive it with the FiiO M15.



TinHiFi C5 has a U- or V-shaped signature with neutrality in mind.



Please see here for detailed reviews on sound quality.



TinHiFi C5



Lows / Bass

The TinHiFi C5's low frequencies are fairly linear and deep reaching, with generally excellent bass.



Drum kicks are also weighty and deep enough to feel rumble and have excellent realism.



Electric bass is also sufficiently black and expansive, sinking well and giving a sense of depth.



Balanced well with the midrange, it is quite good both qualitatively and quantitatively. However, my personal preference is for a little more intensity.



TinHiFi C5



Mids

The midrange of the TinHiFi C5 is almost perfectly neutral and balanced. The center, however, is just a bit concave with a slight emphasis on depth, which makes it sound a bit cramped.



Transparency is more than adequate, but resolution is less than stellar.



Vocals sound slightly flushed, with female vocals sounding faintly nasal and with just a hint of coloration. Crunch is solid, but the contours are a bit rounded, and the edges of the piano and vocal image are slightly blurred and gently balanced to blend into the space.



As a result, it sounds mellow and mild, and the midrange is pleasant to listen to, but there are areas that sound a little less tight and lacking in separation.



Compared to the fairly well-constructed midrange of the C2 and C3, C5 is lacking in some areas. Rock music in particular is not suited for the C5, as the edges of the guitars sound blurred and spread out, and the snare sounds less sharp. On the other hand, if you play a slow song like a ballad, the rough edges are less likely to appear.

blog.ear-phone-review.com

blog.ear-phone-review.com



For example, in pop tunes such as "Koko kara, koko kara," the blurred sound of the electric guitar and the rounded contours of the gentle snare sound conversely evoke a sense of nostalgia, and the loose sense of crispness is also pleasant. The poor separation of the vocals also makes them sound harmonious, and there is a possibility that this can be evaluated as a sense of unity of the music as a whole. Still, when compared to the C2, it sounds a bit too vague and lackluster.

youtu.be



Overall, the C5's midrange isn't bad. However, it is a step or two lower than the performance of the C2 and C3. It can be said that these two models surpass the C5 in both sound balance and resolution.



TinHiFi C5



Highs / Treble

The high frequency range of the C5 seems to have been adjusted with an eye toward definition, but overall it lacks energy compared to the midrange and low frequency range.



The detail is not bad, but the subtlety is quite lacking, and the poor dropout produces little exhilaration. Also, compared to the single dynamic driver C2 and C3, the high frequency range is a bit rough and the sound image consistency is a bit inferior.



The sense of localization is also somewhat difficult to understand.



TinHiFi C5



Sound quality general comment
  • Original Sound Fidelity: A
  • Recommendation: B+
  • Personal preference: B



The TinHiFi C5 is the first hybrid model in the C series, and TinHiFi has created a sufficiently attractive model using a hybrid of a square planar driver and a balanced armature driver, both of which are in vogue these days.



However, given the lack of linearity and poor resolution in the midrange, its siblings C2 and C3 directly threaten the C5.



And the Kinera Celest Gumiho, which has the same driver configuration and exists in roughly the same price range, wins in detail and resolution that the C5 lacks, making it a better choice than the C5 for many.

blog.ear-phone-review.com



TinHiFi C5 vs TinHiFi C3 vs TinHiFi C2
TinHiFi C5 vs Kinera Gumiho

TinHiFi C5



Sound quality features
Pros
  • Excellent texture
  • Good original sound fidelity
  • Frontal localization
  • Good sound balance
  • Bright and cheerful
  • Heavy, deep bass



Cons
  • Lacks high-frequency extension
  • Lacks in resolution





General comment

The TinHiFi C5 is the first hybrid model in the C series, but it has been carefully tuned with a neutral sound balance in mind, and you can feel TinHiFi's enthusiasm for this series. TinHiFi's excellent build quality is also on full display, and its sleek appearance is a pleasure to the eye. However, the presence of its better siblings and competitors threatens the C5, and its lack of resolution and separation in particular may divide some tastes.
