RAPTGO Release: Jointly-designed 4.4mm Shield Upgrade Headphone Cable

RAPTGO Release

RAPTGO Release



RAPTGO Release, a high-quality 4.4mm plug type IEM cable, is now available.



Features

  • Litz Taiwan Single Crystal Copper & Long Crystal Copper Silver-Plated Conductor
  • 4.4mm Shielded Wire
  • Well-Knit Wire Structure
  • High Grade Insulation Material
  • Designed to Associate with RAPTGO's Products



Specifications

  • Conductor Configuration: Single Strand Outer Diameter 1.6mm, Four Strands of Braided Wire
  • Conductor Material: Litz Taiwan Single Crystal Copper (Main Core) & Litz Long Crystal Copper Plated Silver (Silver)
  • Wire Structure: Φ0.05mmx7 ×7 ×4 Strands (Main Core) + Φ0.05mmx8 ×8 ×4 Strands (Shielding)
  • Inner Structure: NUC High Precision Foam HDPE (Made in Japan)
  • Outer Insulation: High Transparency Softflex PVC (USA Made)
  • Weight/ Length: 30g/120cm
  • Plug: 4.4mm Balance Plug, Copper Plated 24K Gold
  • Pins: 0.78mm Double Pin, Copper Plated 24K Gold



RAPTGO Release



Litz Taiwan Single Crystal Copper & Long Crystal Copper Silver-Plated Conductor

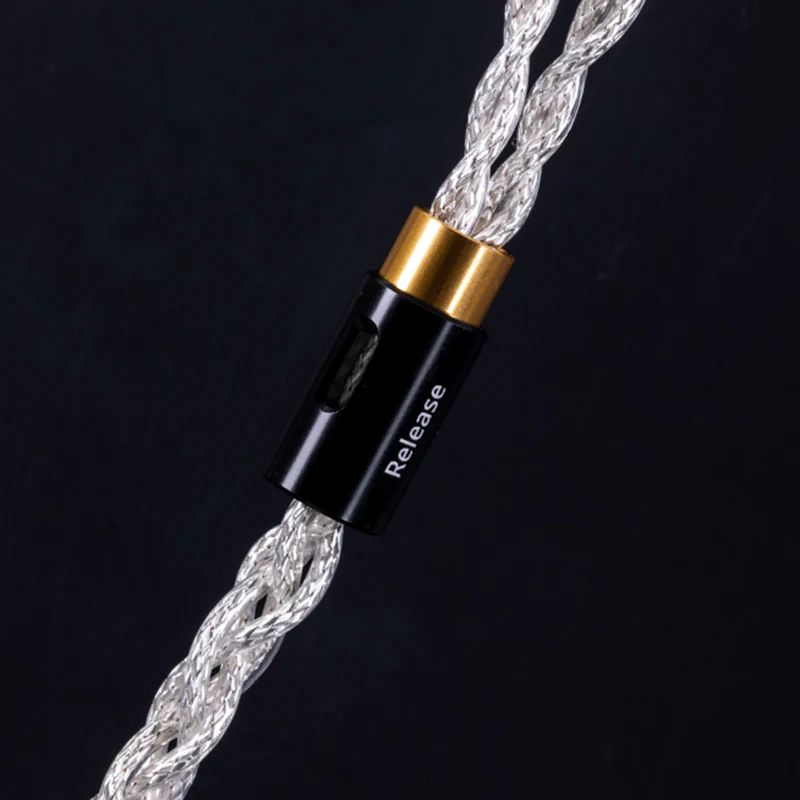

The release is a shielded version of upgraded earphone cable jointly created by RAPTGO and DDHIFI, which adopts Taiwan Bandung single crystal copper and long crystal copper silver-plated conductor. It features the same shielding structure as DDHIFI's Nyx and a brand-new mid-part cable device design. RAPTGO Release follows with excellent performance, stable and smooth signal transmission, and soft feeling of its body to effectively avoid Stethphone Effect.

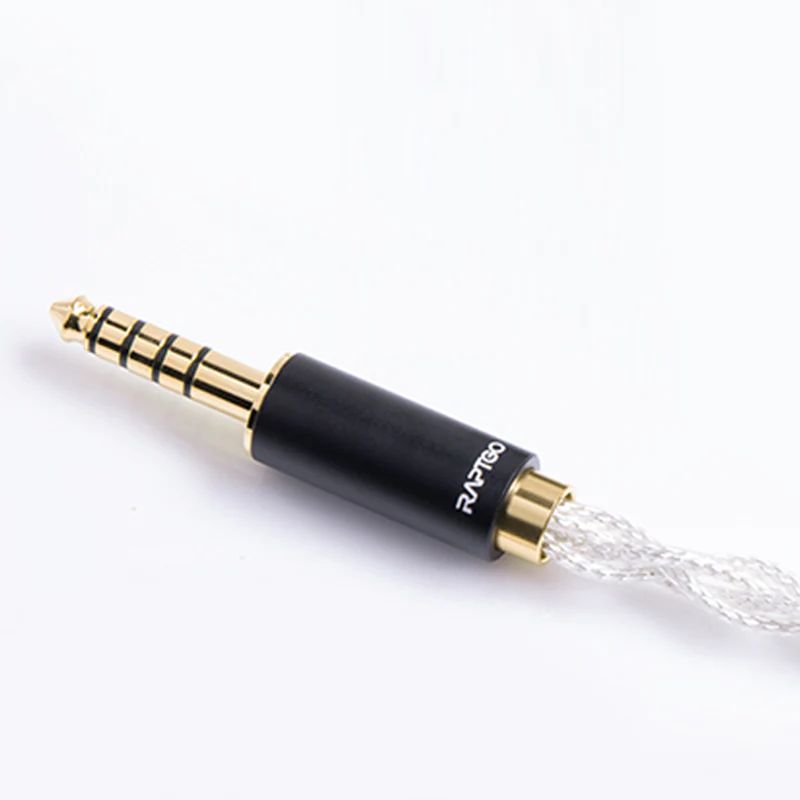

4.4mm Shielded Wire

To simplify the process, most of the headset shield cable on the market is not connected to the 4.4mm plug ground cable. To enhance the anti-interference of the earphone cable in the development process, the shielding layer was connected to the ground wire of the 4.4mm plug to increase the cleanness of the sound.



RAPTGO Release



Well-Knit Wire Structure

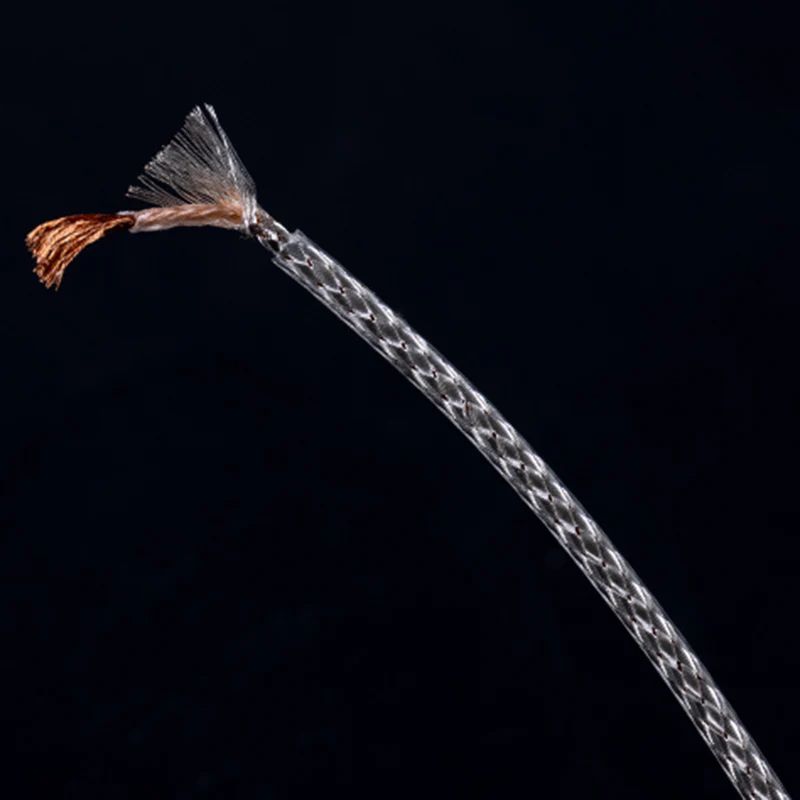

The release features a well-knit structure in cable and shielding. This cable adopts four 0.05 mm * 7 * 7 wires as the core, and four 0.05 mm * 8 * 8 wires as the shielding.



High Grade Insulation Material

RAPTGO Release characterizes Inner and exterior insulation with high-grade insulation material, including high precision foam HDPE from Japan NUC, which is made in Japan, and high transparency SoftFlex PVC, which is made in the USA.



RAPTGO Release

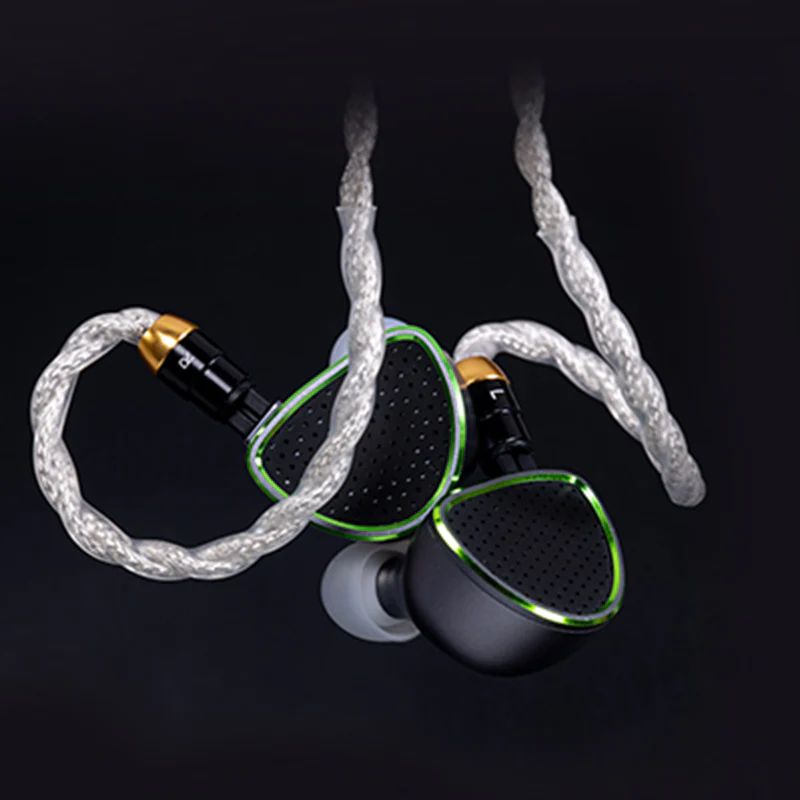

Designed to Associate with RAPTGO's Products

When Release works with RAPTGO's products, the low frequency was significantly improved, especially in terms of fullness and diving of any frequency and in terms of the resolution of the background instruments. The overall listening sensation of the transient improvement is relatively obvious, especially when dealing with fast songs, more leisurely than before.



RAPTGO Release



Price & Availability

The RAPTGO Release is available now at Linsoul and other locations for $189.99.
