(Portable Headphone Amp Review) Hidizs XO: Fun LED light effects, solid choice in price range.

Hidizs XO

Hidizs XO



Hidizs, known for its digital audio players and portable headphone amplifier products, has released its latest portable headphone amplifier, the Hidizs XO.



Hidizs XO Features

  • MQA 16X
  • ESS SABRE ES9219C * 2
  • Stylish RGB LED Light - Hidizs Patented Innovation
  • Physical Button for RGB LED Lights & Filter Mode Switch
  • Single-ended 3.5mm + Balanced 2.5mm
  • Sampling Rate Indicator Light
  • HiBy Music APP
  • Hi-Res Audio & MQA certified



Hidizs XO

Hidizs XO



DUAL ESS SABRE ES9219C DAC & Independent Crystal Oscillators

Get double the audio performance and the most accurate clocking for both DACs, through the synergy of the Dual ESS SABRE ES9219C DAC chips, and high-precision independent crystal oscillator, for the purest audio experience, and reproduce real music with unprecedented accuracy!


Outstanding DAC parameters: 32bit/384kHz PCM, DSD256, +121dB DNR, -114dB THD+N, ultra-low power consumption, high integration, and substantially better performance than previous iterations.


Remarks: The above official data is provided by ESS company.



Hidizs XO



MQA 16X

MQA is an award-winning British technology that delivers the sound of the original master recording. The master MQA file is fully authenticated and is small enough to stream or download.


MQA audio technology is supported by Hidizs XO portable dongle DAC AMP, able to fully 'unfold' MQA files (16X) to deliver outstanding sound quality.


*Music services that support MQA should be installed on playback devices (e.g. HiBy Music, TIDAL) to realize 16X unfolding of MQA audio.



Hidizs XO



Stylish RGB LED Light - Hidizs Patented Innovation

The front of the XO MQA Dongle has a unique X-shaped button for independent control of the RGB LED lights. (15+ lighting effects)


You will be attracted by the light effects of the XO MQA Dongle.



Hidizs XO



Physical Button for Filter Mode Switch

There is also a dedicated O-shaped button on the XO MQA Dongle for filter mode switch. No need to update firmware or use your phone, just one button to get 2 different sound styles. Plug and play for maximum simplicity and convenience.



Hidizs XO



XO MQA Dongle - Like a work of art

The XO MQA Dongle uses a high-density aluminum alloy shell, which is integrally formed with a typical 5-axis CNC high process. For the first time, the etched technology is used on both sides of the XO MQA Dongle. With Hidizs initials - "H" as the design element, the micron-level complex and meticulous metal processing is carried out. Etch a number of "H", end to end, in the shape of a net hollow. The XO MQA Dongle has built-in RGB LED light tubes, and the light changes and staggers, scattered from the countless "H".



Hidizs XO



Single-ended 3.5mm + Balanced 2.5mm

The XO MQA Dongle is only the size of a USB and weighs only 11 grams. Contains two outputs, enough to drive mobile phones, iPads, and PCs. The output power is strong but not excessive, single-ended 78mW+78mW@32Ω / balanced 195mW+195mW@32Ω. The XO MQA Dongle perfectly balances sound quality and battery life.



The XO MQA Dongle not only powers 8-250Ω headphones, but it also performs well when paired with 300Ω high-impedance headphones!


Portable and powerful enough to satisfy demanding users, the XO MQA Dongle is a must-have for true music lovers worldwide!



Hidizs XO



Sampling Rate Indicator Light

The light of the O-shaped button of the XO MQA Dongle shows the sampling rate. According to the color of the light, the sampling rate of the currently playing song can be known.



Hidizs XO



HiBy Music APP

Hidizs XO Single-ended & Balanced MQA Dongle supports industry-leading professional app - HiBy Music.



Hidizs XO

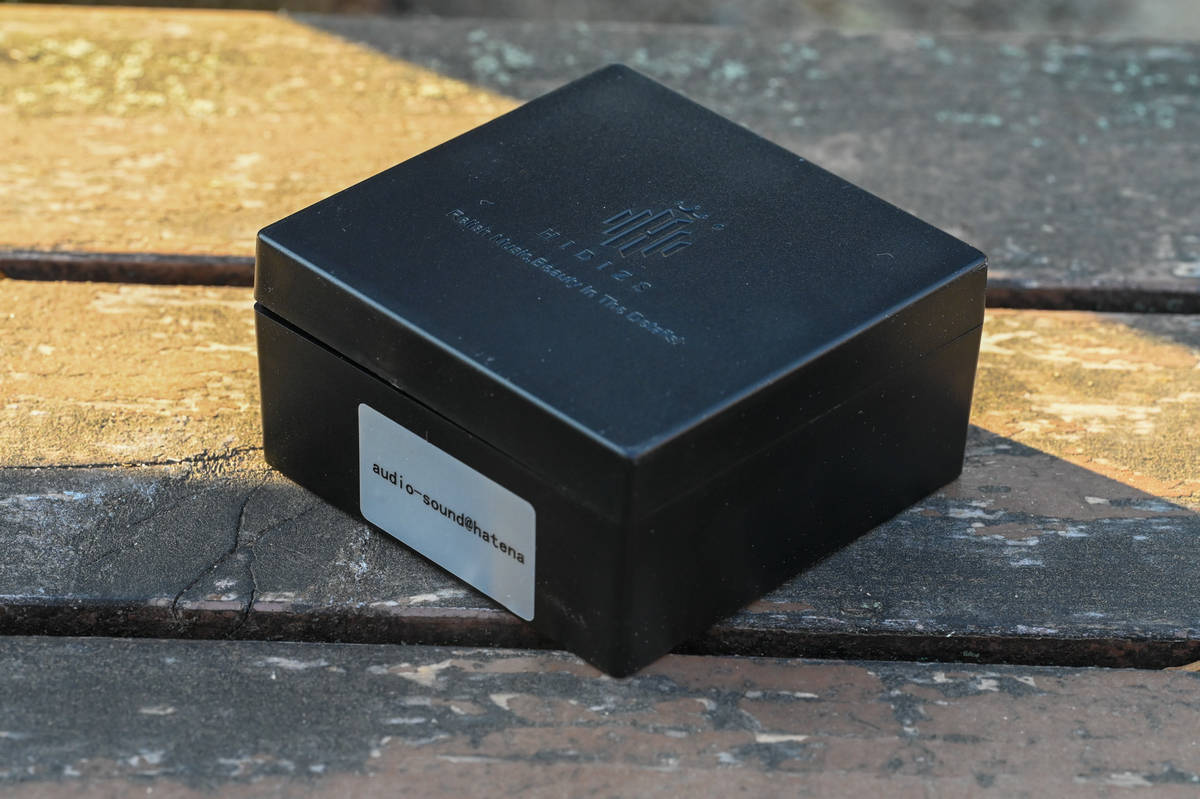

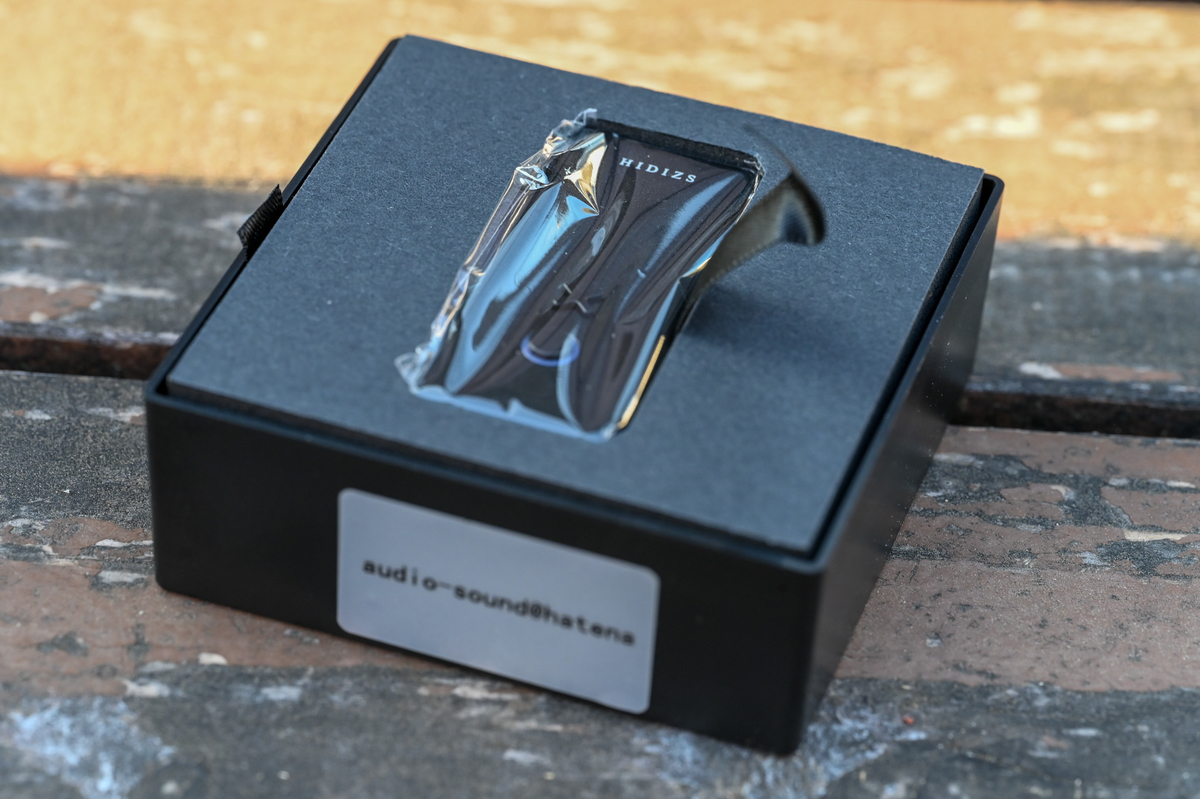

Package

The package is relatively simple.



Package Contents
  • Hidizs XO
  • USB Type-C Cable
  • USB Type-C to Type-A Conversion Adapter
  • Manual



Hidizs XO

Hidizs XO

Hidizs XO
Hidizs XO

Hidizs XO

Hidizs XO

Hidizs XO

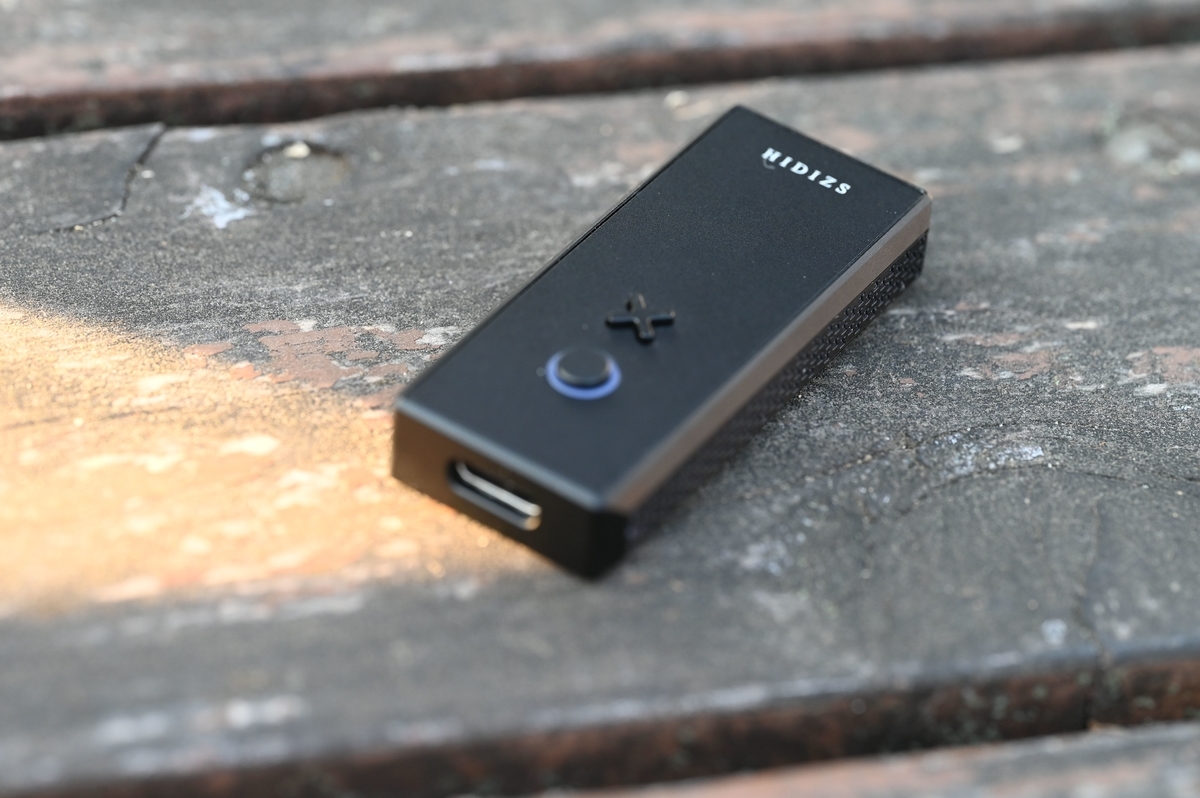

Build quality

Hidizs XO



The build quality of the Hidizs XO meets the price standard.



It is sturdily built with a lightweight aluminum chassis and offers 2.5mm balanced and 3.5mm single-ended headphone jacks. We would have preferred 4.4mm balanced support if possible, but 2.5mm was probably more suitable for the compact form factor.



Of the distinctive X and O buttons, the X is used to control the RGB lights. Each press switches the RGB light pattern. A total of 15 patterns are available. It can also be turned off.



The O button is used to switch between two types of digital filters. Switching between filters rarely has a significant acoustic effect in practice, and XO's filter switching is also almost imperceptible.



Sound Quality

Even when tested with Hidizs MD4 (8 ohms/102dB), a fairly efficient IEM, the tone seems to be fairly clean and unseasoned.

blog.ear-phone-review.com



HiBy Music is the recommended app; it works perfectly with HiBy Music and the volume controls and equalizer are well controlled by HiBy Music. Some Android DAPs did not work well with the default settings or default player for volume control, so installing and configuring HiBy Music seems to be the quickest way to go.



The popular S9 Pro model from the same Hidizs was able to run the beyerdynamic DT990 with an impedance of 600 ohms at nearly sufficient volume; the XO has a bit less output, but still manages to drive the DT990. Basically, most headphones up to about 300 ohms can be driven without feeling any problems, as Hidizs claims.



Heat generation is well controlled, and despite its compact size, the XO did not get hot during our tests.



In general, the S9 Pro is better when using more power and higher quality audio sources. The XO supports MQA 16x decoding, so if MQA is important to you, this is the way to go.



Hidizs XO



General Comment

The Hidizs XO is a fun portable headphone amp with colorful LEDs that can drive both IEMs and headphones well and works well with HiBy Music, making it a good candidate for those seeking an all-in-one dongle amp in this price range.



However, in the same price range is the well-regarded Shanling UA2 Plus, which offers a 4.4mm balanced connection, higher signal-to-noise ratio and drive power, and support for DSD and PCM decoding up a notch; the UA2 Plus does not support MQA decoding, but is comparable to the higher-end S9 Pro sound at the same price as the XO, so it is worth considering as a comparison.
