【Chi-fi earphone review】DUNU Studio SA3: Constructed sound with a clear and well-defined mid-range sound centered on the vocals. The sound field is deep and has excellent layering on the horizon. Its design is also very attractive.

DUNU Studio SA3

DUNU Studio SA3

Linsoul DUNU SA3 3BA Triple Driver HiFi in-Ear Earphones with 3D Printed Shell, Hand-Painted Faceplate, Detachable 0.78mm 2Pin Cable for Musicians Audiophile





This article is a translation of the following Japanese article.

www.ear-phone-review.com



In this issue, we will focus on the DUNU Studio SA3. DUNU is an audio brand from Taiwan with a manufacturing base in China, known for its high-quality IEM products. The latest addition to the DUNU lineup is the "Studio" series, and the SA3 is the first entry-level model in the series.

hifigo.com

hifigo.com



Basic specifications

  • Frequency responce: 5hz-40kHz
  • Impedance: 13Ω
  • Sensitivity: 112dB
  • Cable connector: 0.78mm 2pin



DUNU Studio SA3 3 BA Drivers In-Ear Earphone 3D Print IEMs HiFiGo

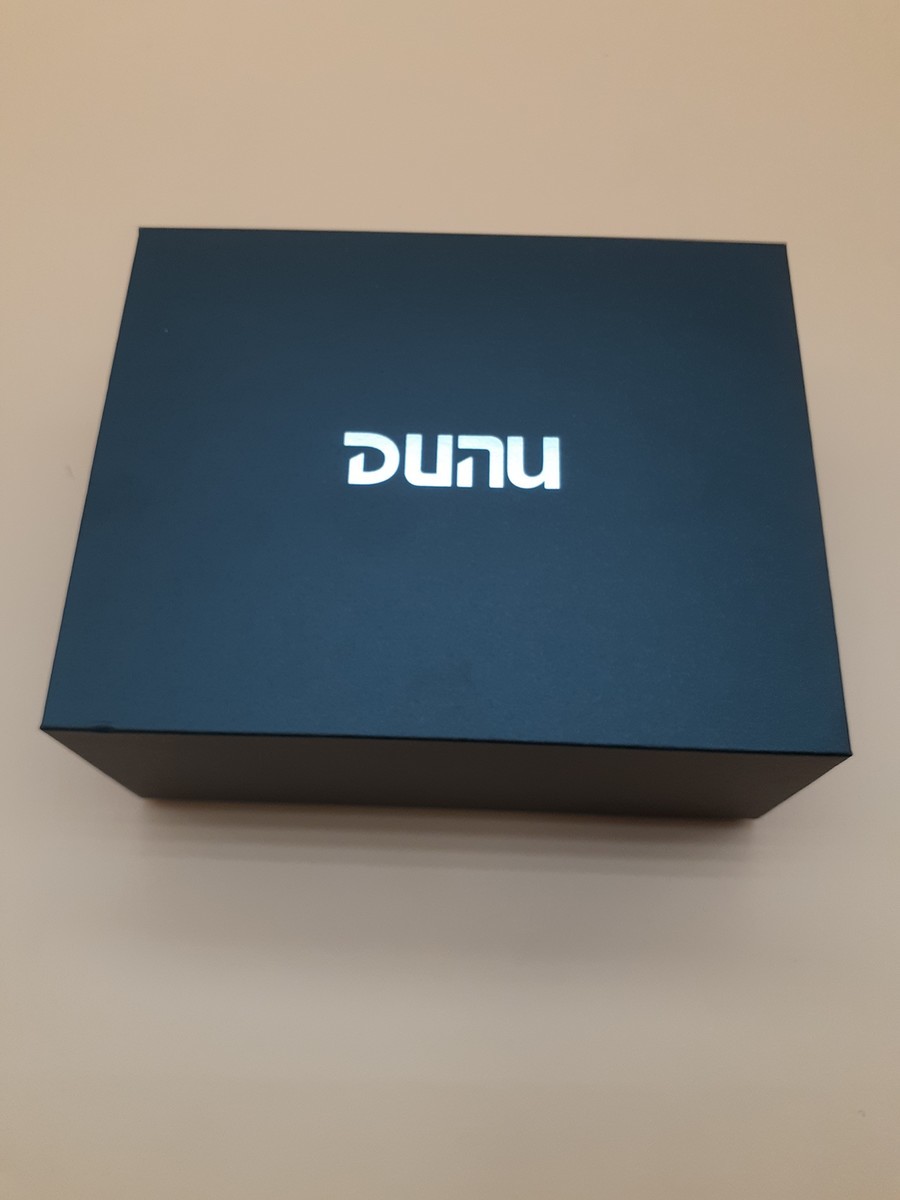

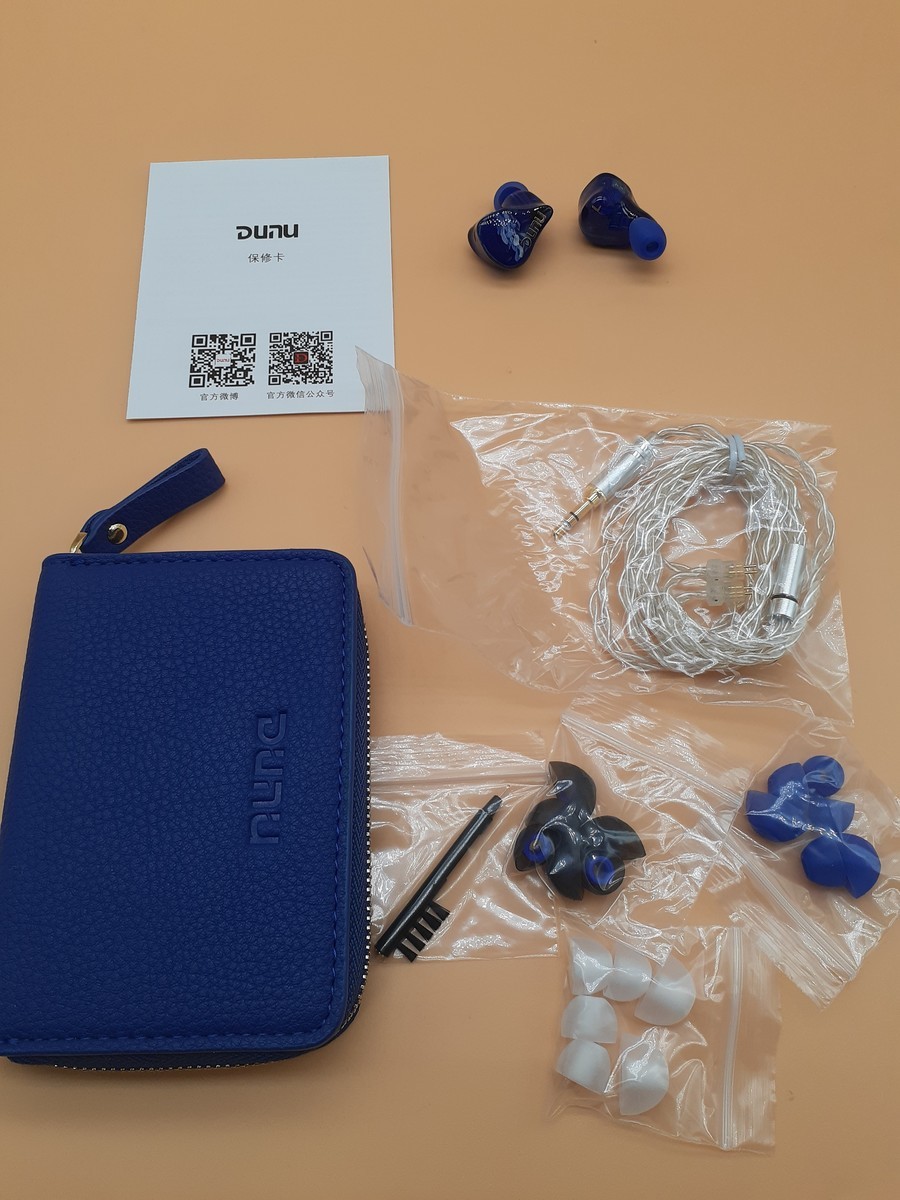

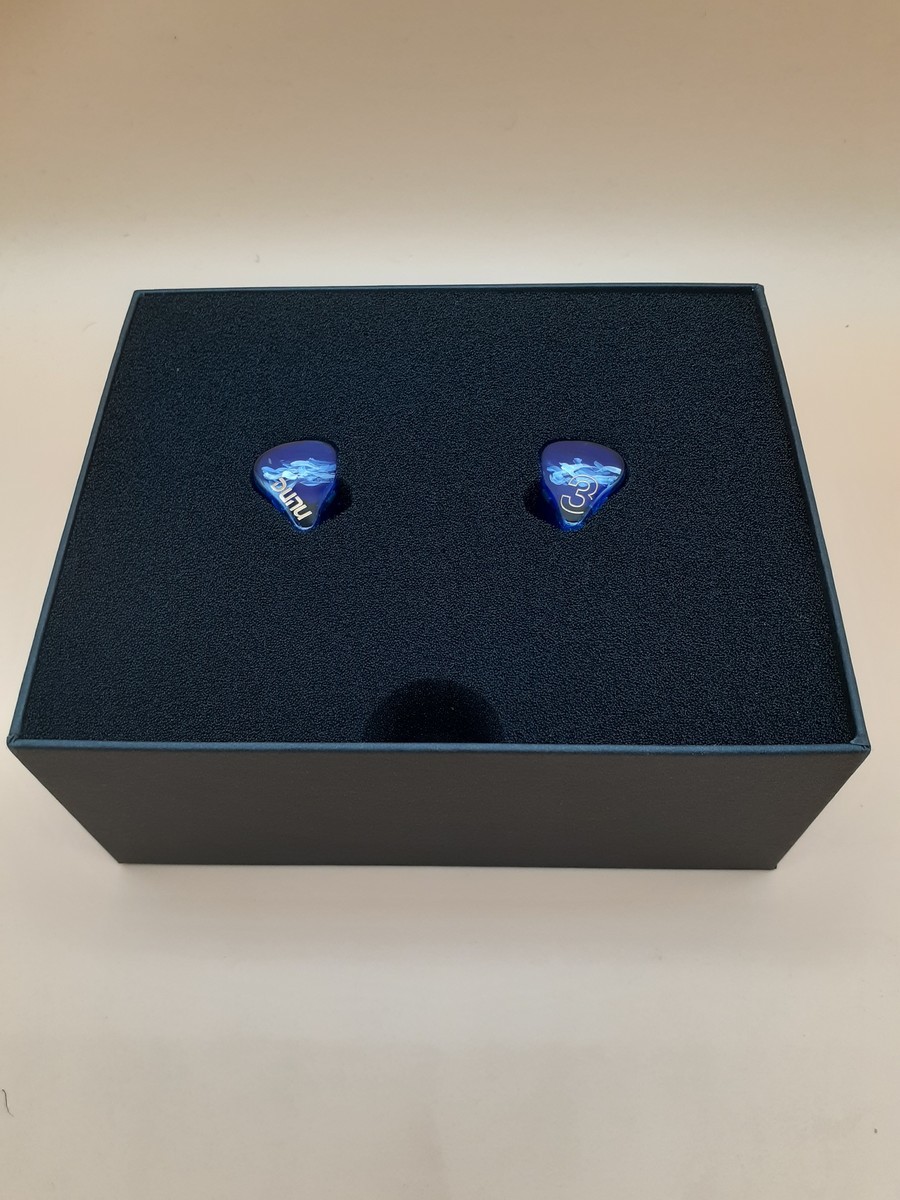

Unboxing

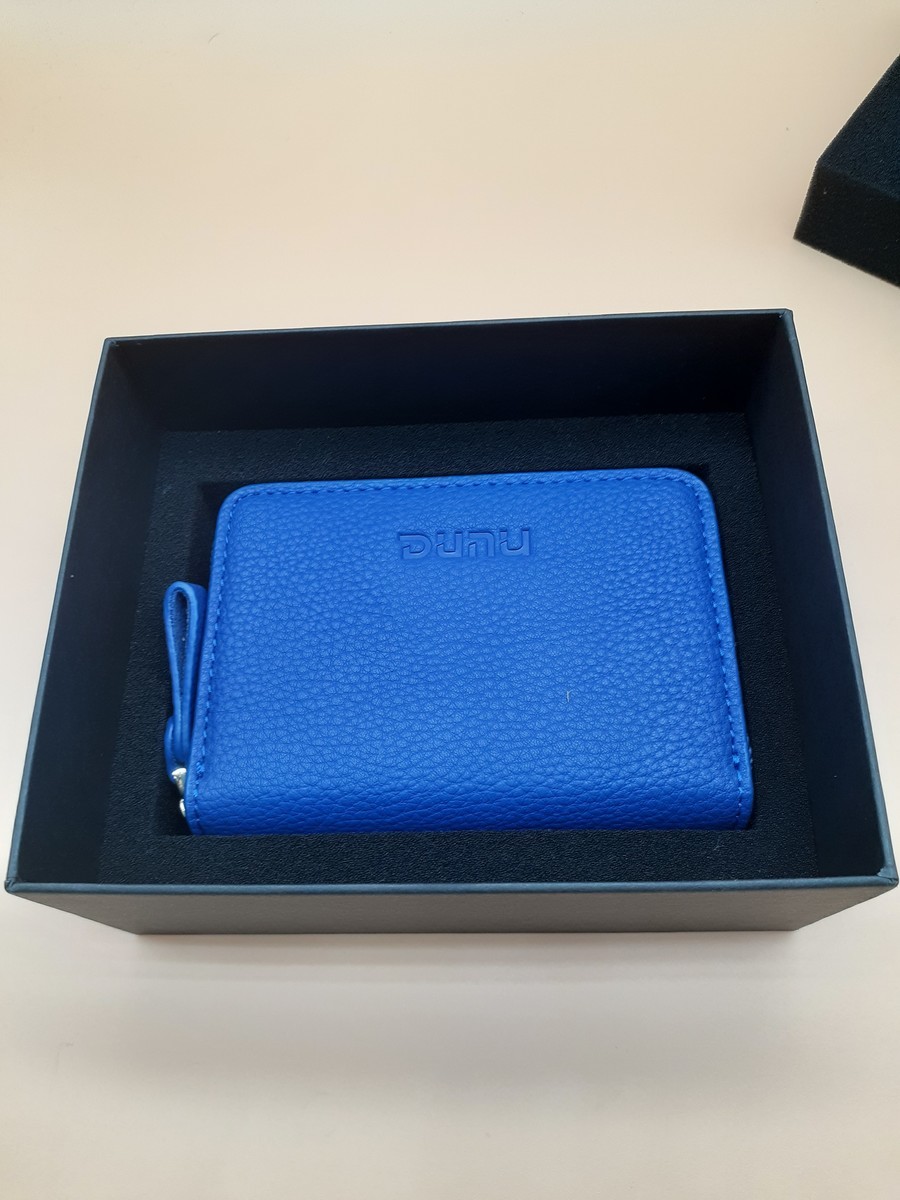

This is an excellent package at this price point. It comes with many accessories and a gorgeous leather carrying case.

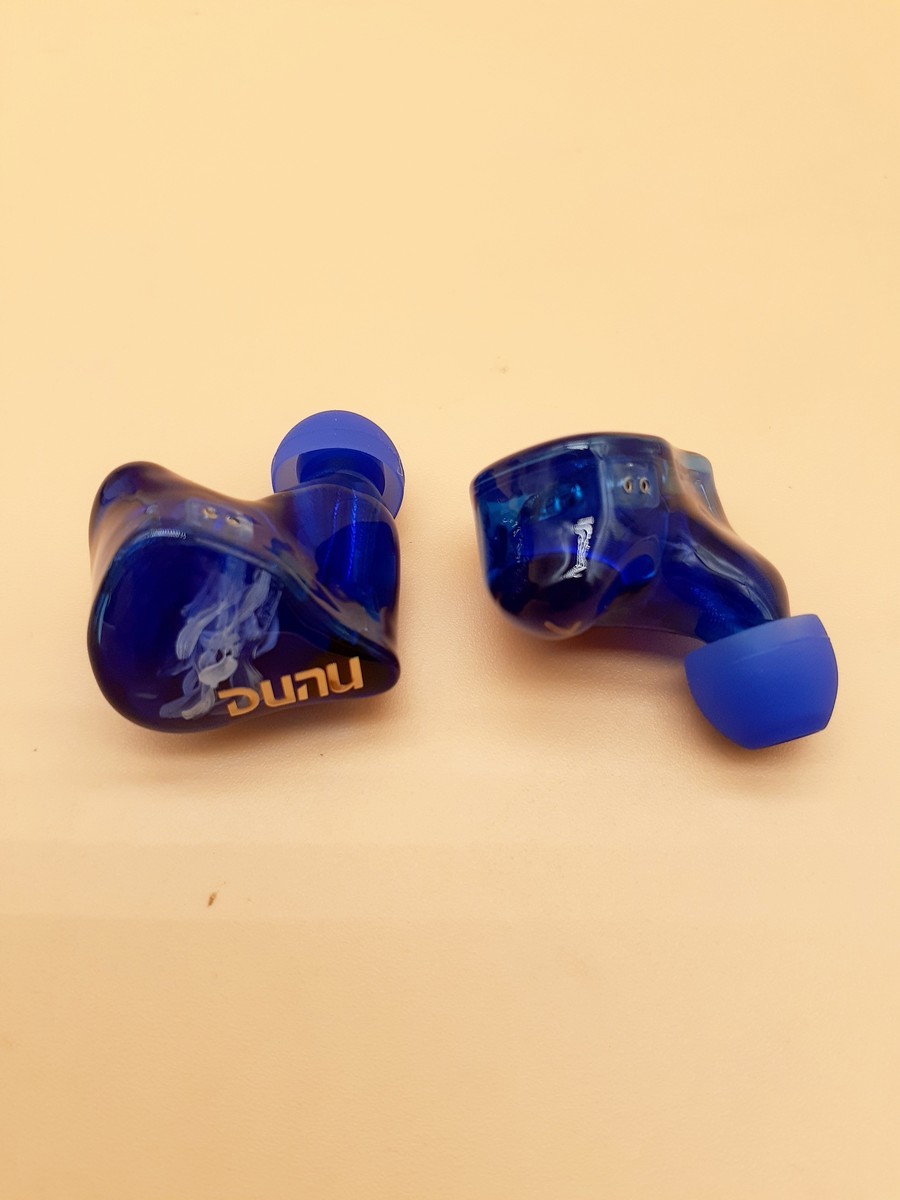

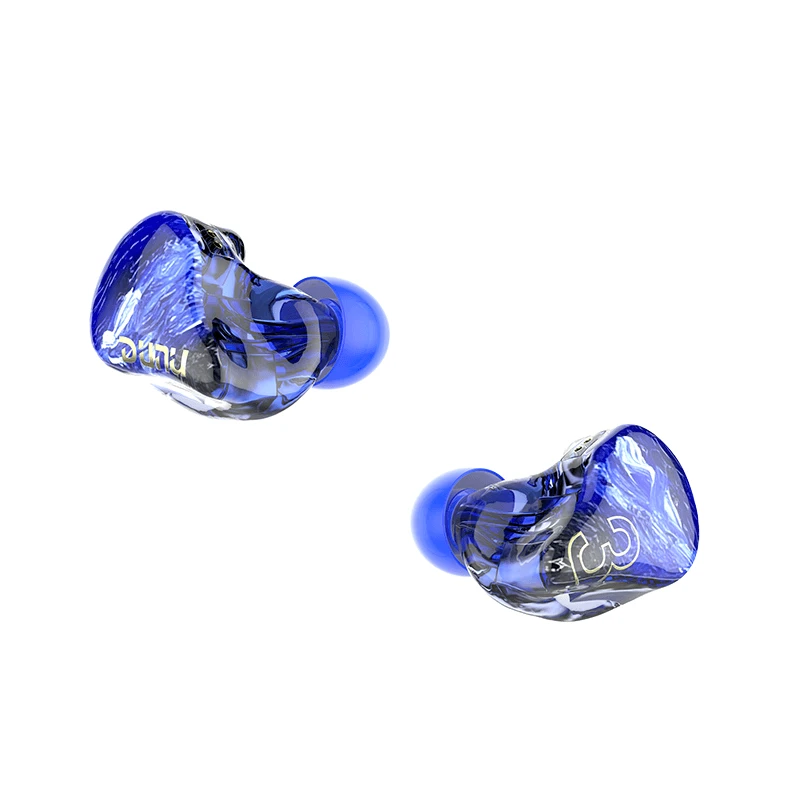

The build quality of the body is high, and it is carefully hand-painted and has a very stylish and cool design. The design is a bit different from the rugged image of the previous DUNU products, with a pop, stylish and youthful look.



DUNU Studio SA3

DUNU Studio SA3

DUNU Studio SA3

DUNU Studio SA3

DUNU Studio SA3

DUNU Studio SA3

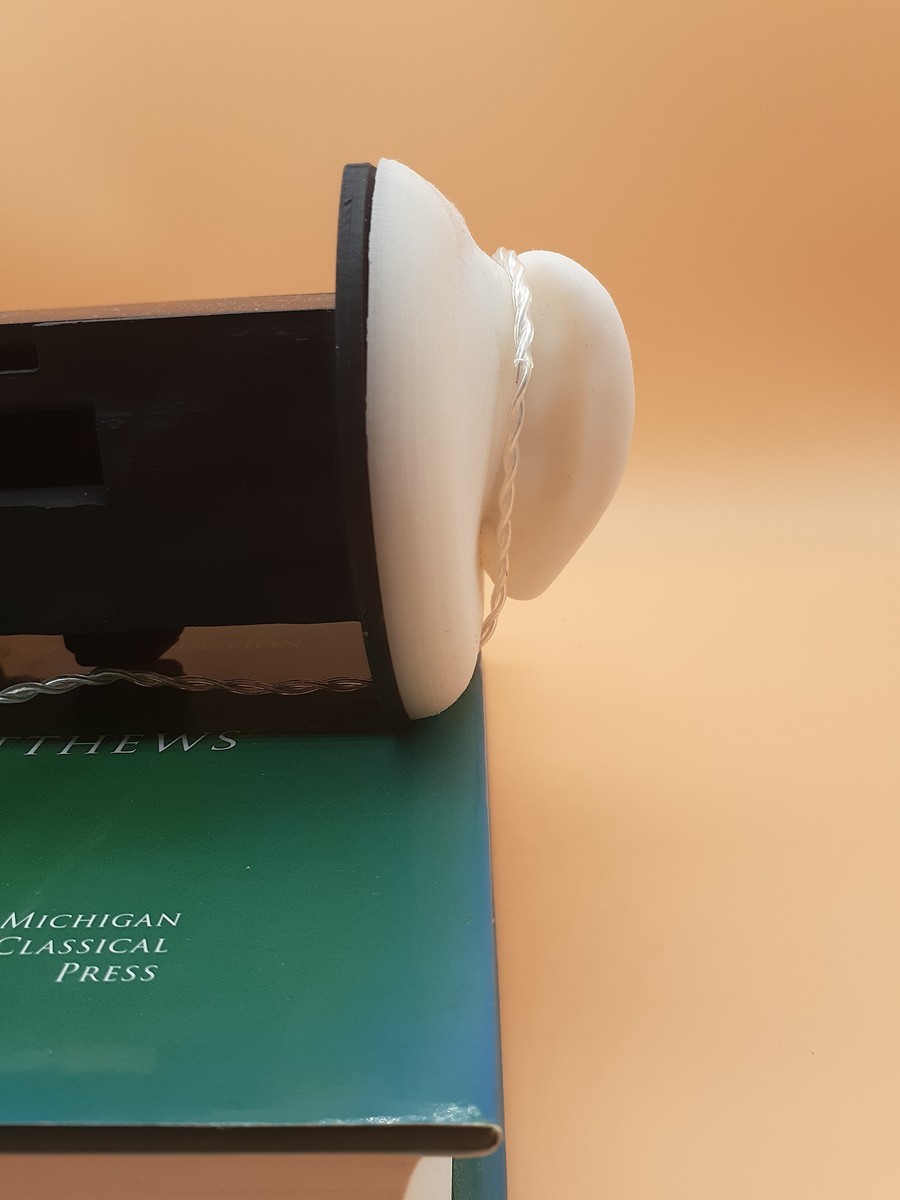

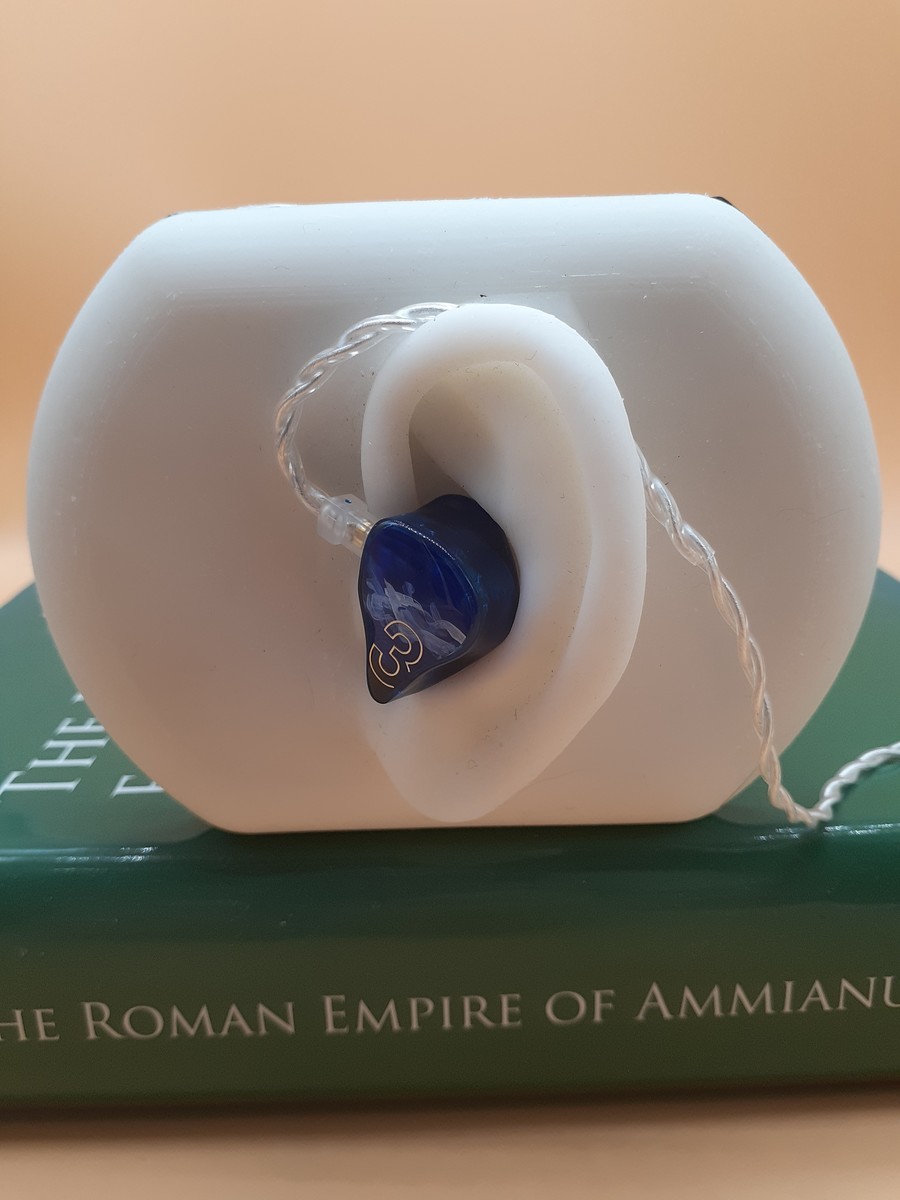

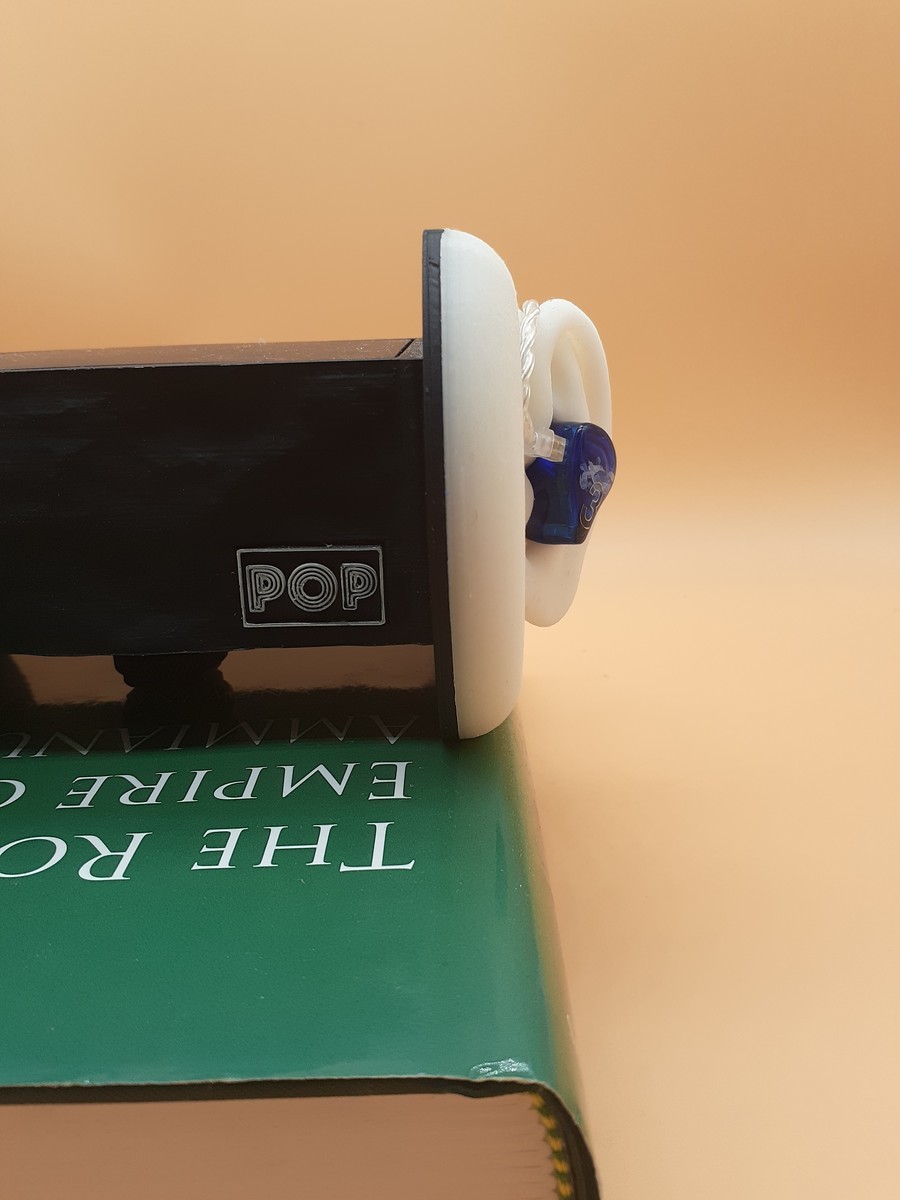

Fit

This is a universal IEM type and fits in the ear very well. They are slightly thicker and larger, but they probably won't be difficult to fit in small ears.



DUNU Studio SA3

DUNU Studio SA3

DUNU Studio SA3



Sound Quality

Measuring equipment

  • SAMURA HATS Type3500RHR System: HEAD & TORSO, left and right S-Type ear model (Type4565 / 4566: IEC60268-7 compliant)
  • AWA type 6162 711 ear simulator
  • Microphone preamplifier: Type4053
  • Type5050 microphone amplifier power supply
  • Audio interface: ROLAND Rubix 24
  • Analyzer software: TypeDSSF3-L

*Due to the response of the ear simulator, the reliability below 20hz and above 16khz is not high.

www.phileweb.com

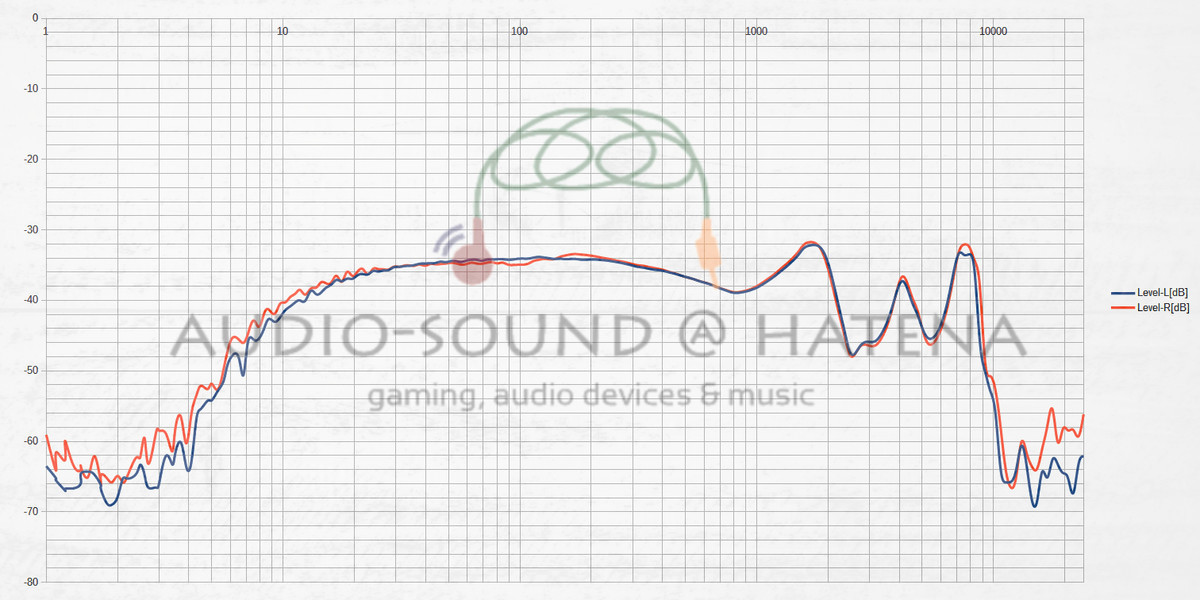

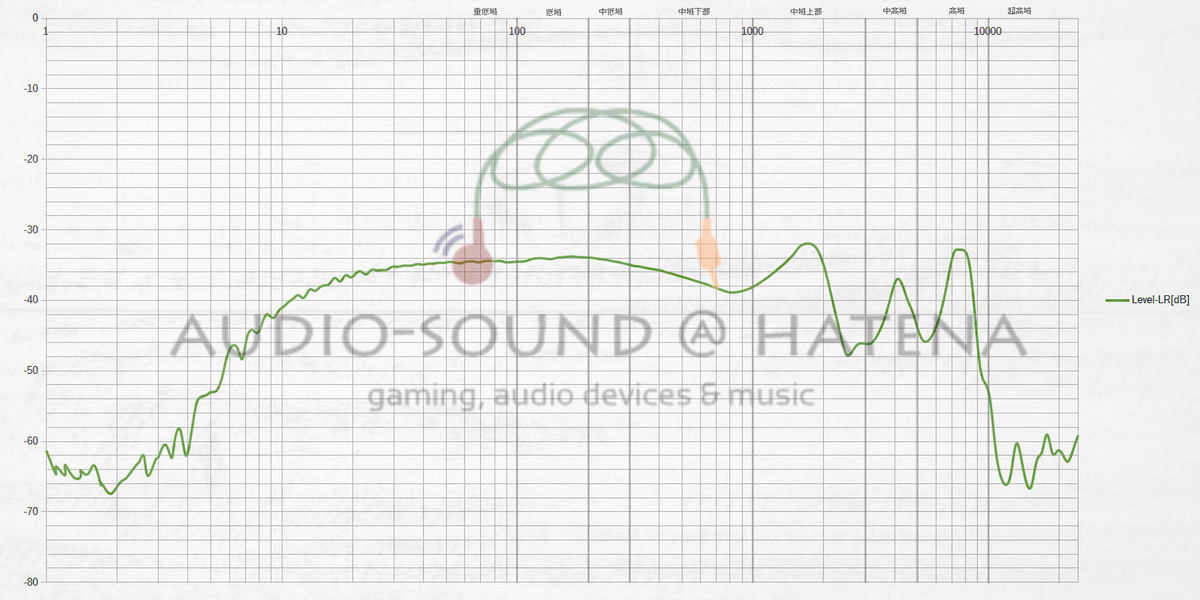

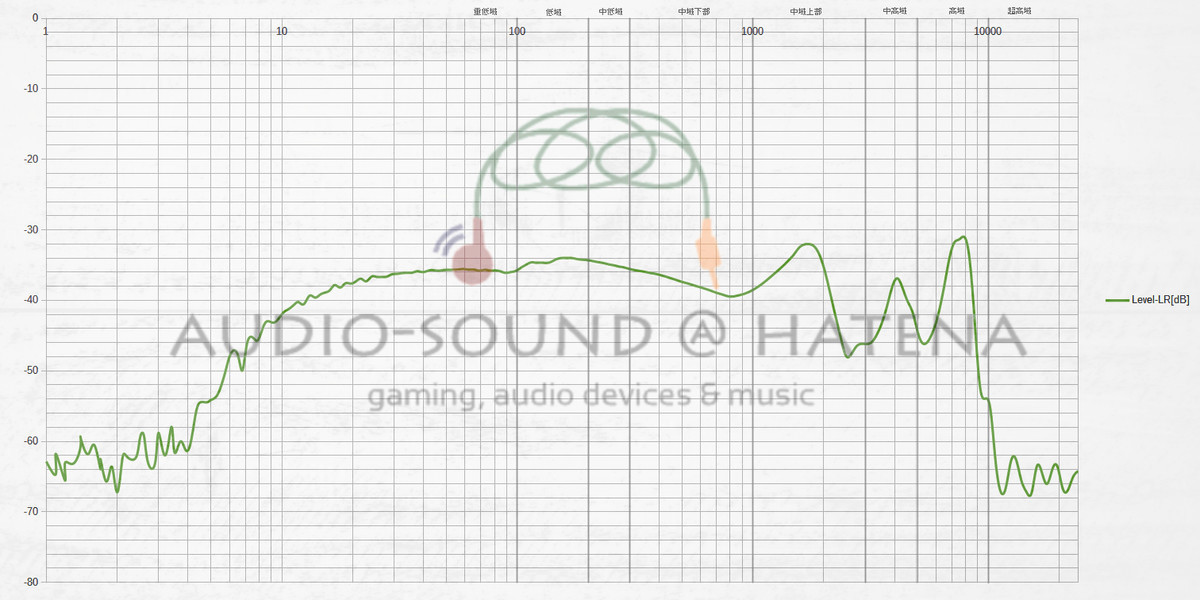

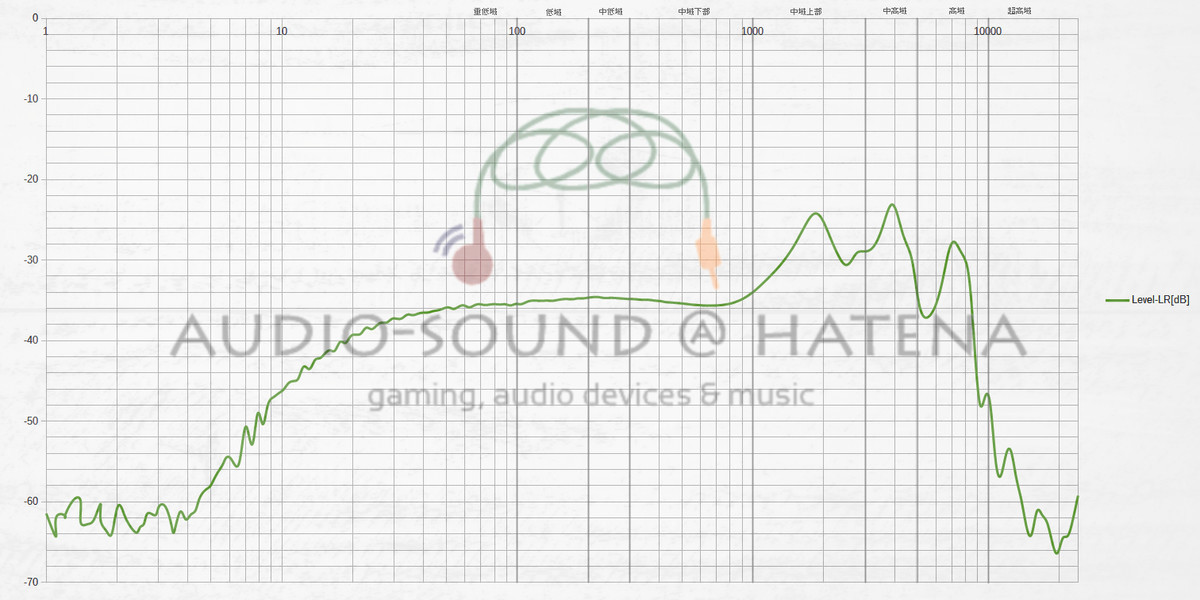

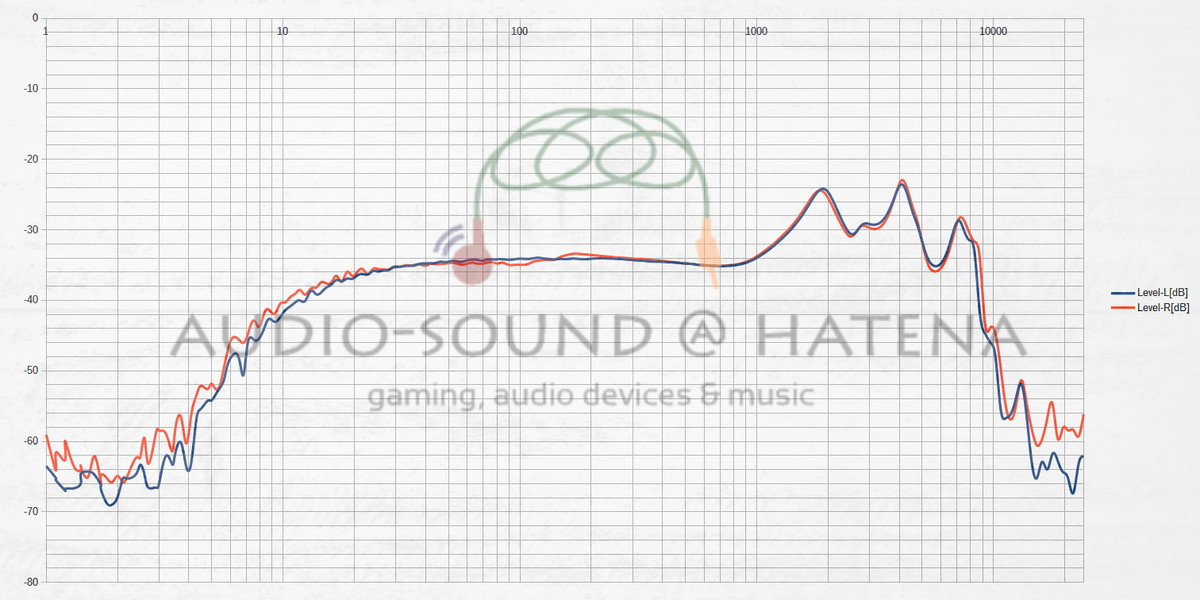

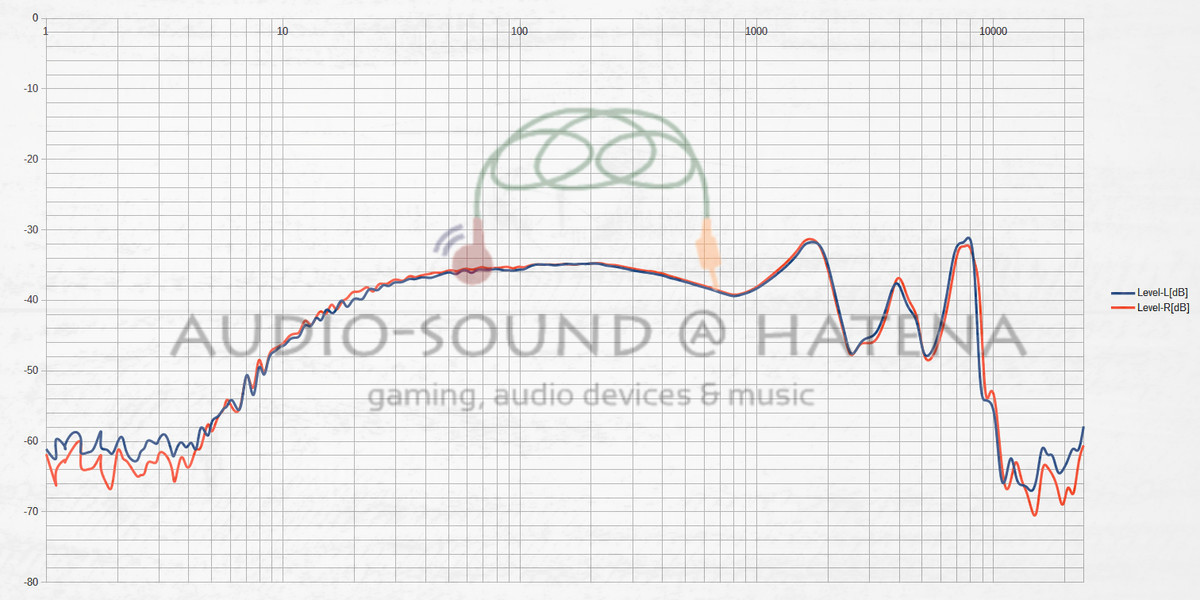

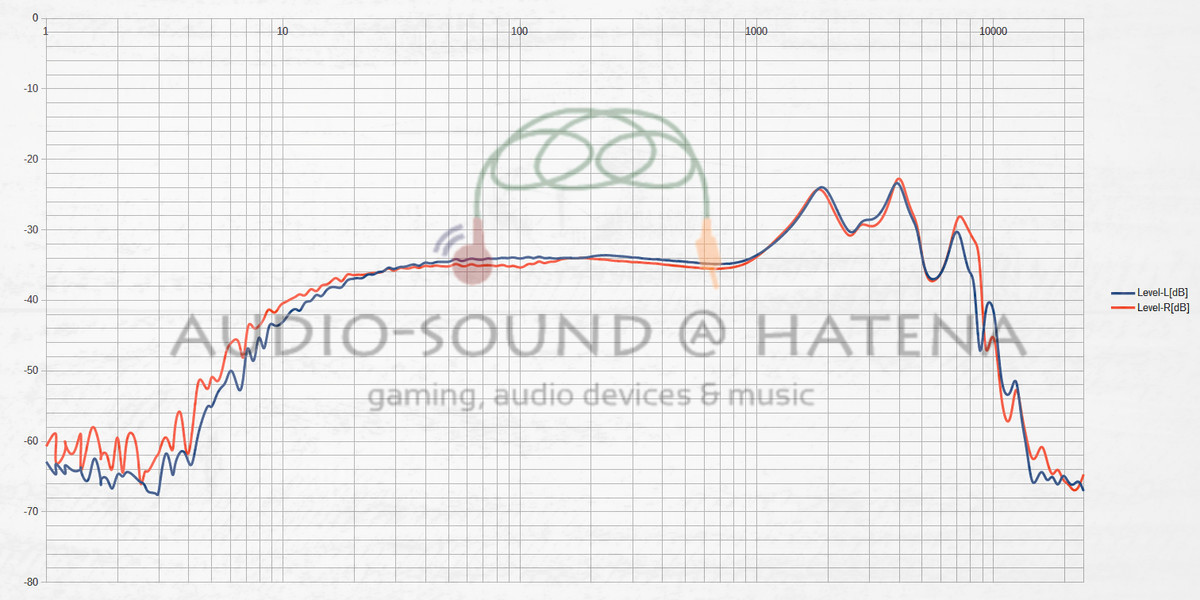

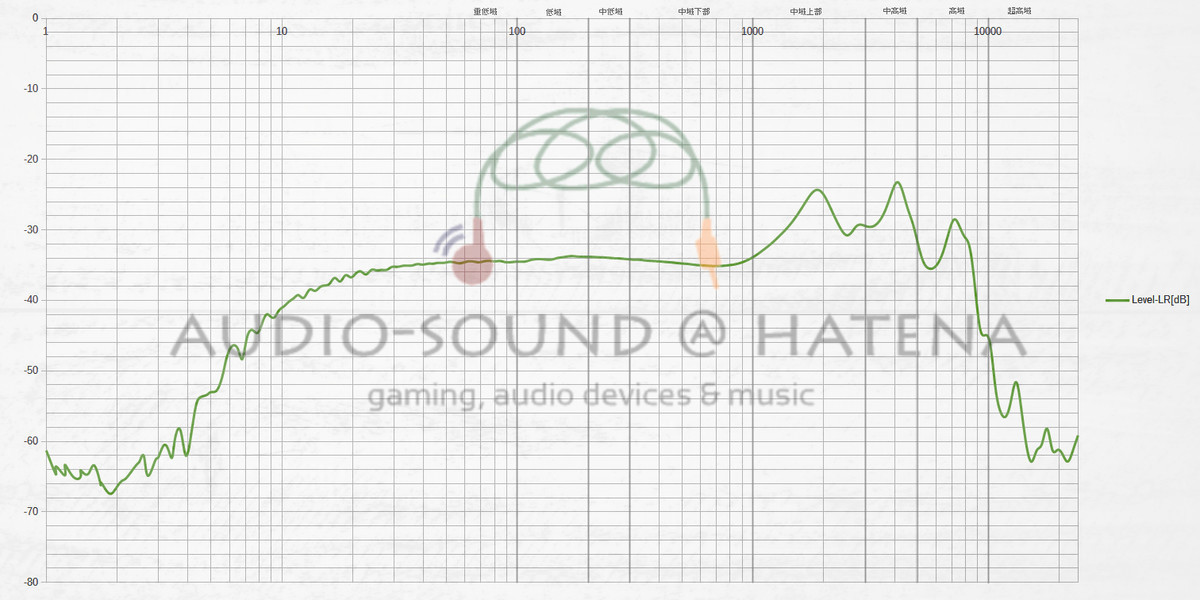

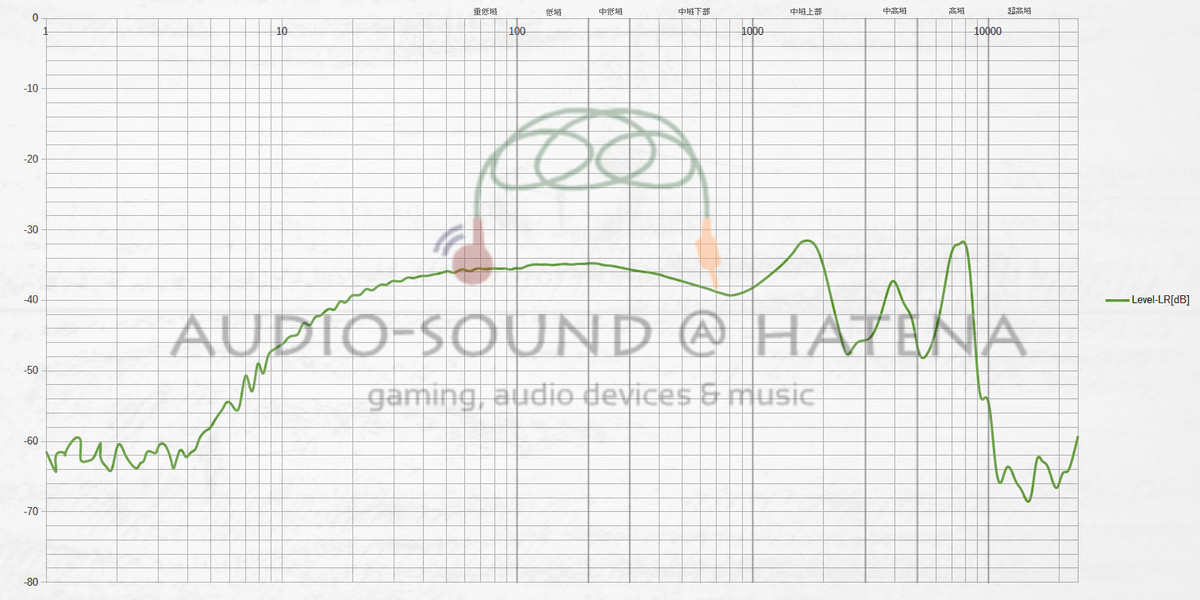

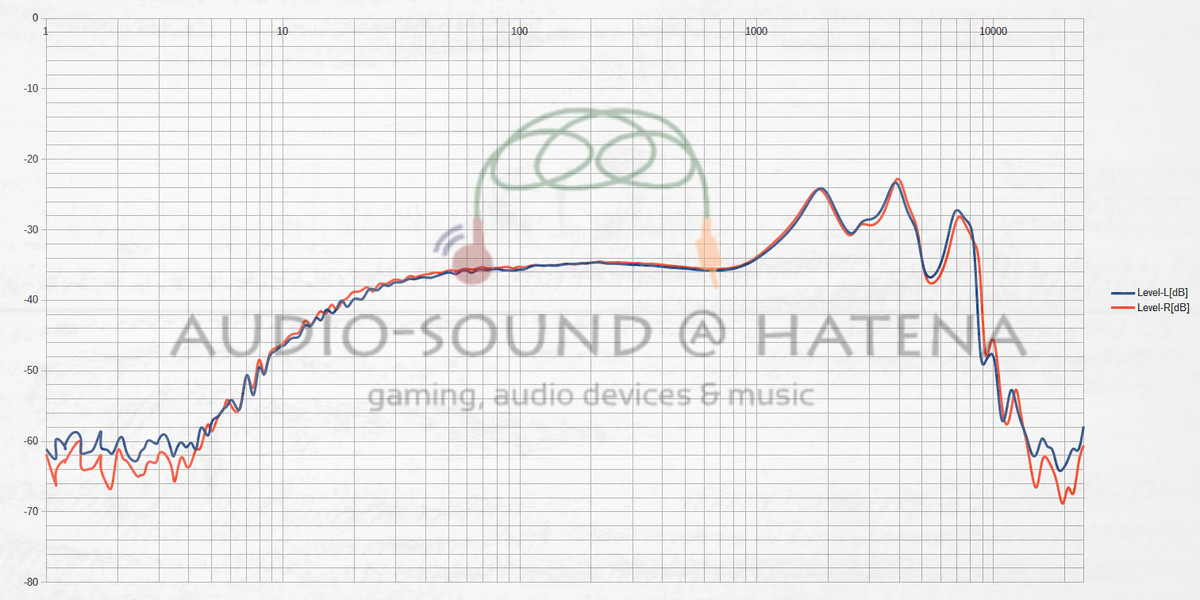

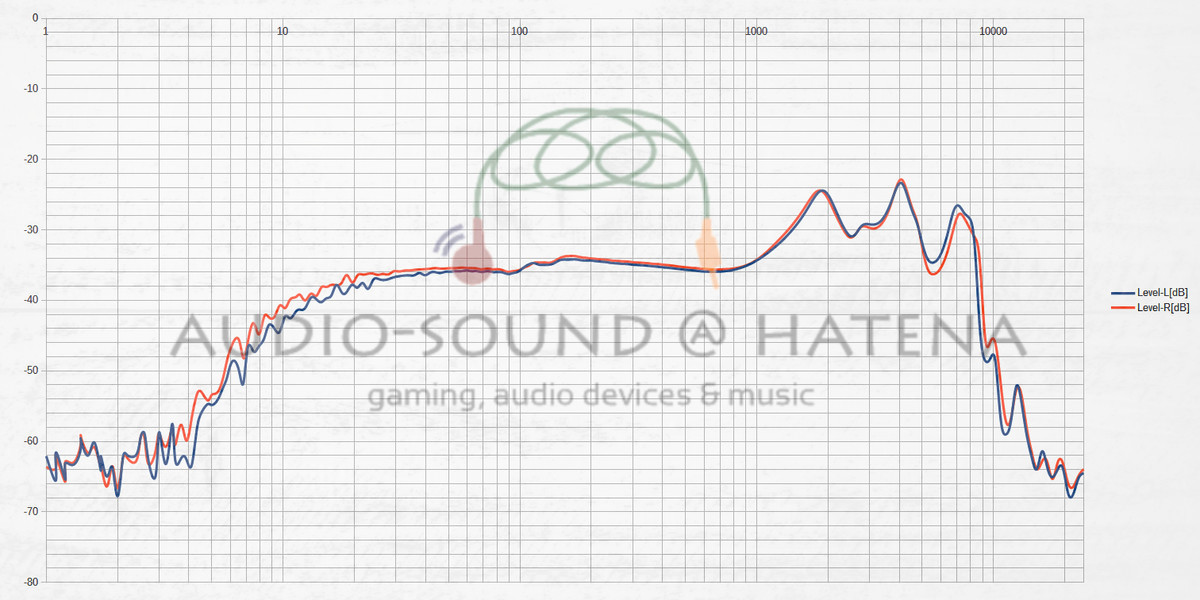

Frequency response

In order,

  1. [AET07 S attached] Separate left and right
  2. [AET07 S attached] Average left and right
  3. [AET07 S attached] Separate left and right (free sound field corrected)
  4. [AET07 S attached] Left-right average (free sound field corrected)
  5. [Standard eartip S (Blue) attached] Separate left and right
  6. [Standard eartip S (Blue) attached] Average left and right
  7. [Standard eartip S (Blue) attached] Separate left and right (free sound field corrected)
  8. [Standard eartip S (Blue) attached] Left-right average (free sound field corrected)
  9. [Standard eartip S (Blue Axis) attached] Separate left and right
  10. [Standard eartip S (Blue Axis) attached] Average left and right
  11. [Standard eartip S (Blue Axis) attached] Separate left and right (free sound field corrected)
  12. [Standard eartip S (Blue Axis) attached] Left-right average (free sound field corrected)
  13. [Standard eartip S (White Axis) attached] Separate left and right
  14. [Standard eartip S (White Axis) attached] Average left and right
  15. [Standard eartip S (White Axis) attached] Separate left and right (free sound field corrected)
  16. [Standard eartip S (White Axis) attached] Left-right average (free sound field corrected)
  17. Comparison (free sound field corrected)
  18. Comparison (free sound field corrected/2khz-24khz)

* "AET 07 S size" is the reference eartip for measurement of this blog. All other eartips are standard with this earphone package unless otherwise noted.



DUNU Studio SA3

DUNU Studio SA3

DUNU Studio SA3

DUNU Studio SA3

DUNU Studio SA3

DUNU Studio SA3

DUNU Studio SA3

DUNU Studio SA3

DUNU Studio SA3

DUNU Studio SA3

DUNU Studio SA3

DUNU Studio SA3

DUNU Studio SA3

DUNU Studio SA3

DUNU Studio SA3

DUNU Studio SA3



In terms of sound signature, when viewed as a whole, it's almost flat, with a shape that can be described as slightly U-shaped. There's a good sense of focus in the midrange, with vocals sounding gentle, sweet and clean, but it's easy for some people to hear the sound clustered a bit in the midrange.

hifigo.com



There is very little emphasis in the low frequencies and there is a sense of perspective, with the sound falling flat as it is from the midrange. Layering is good and contours sound clean, but it lacks a bit of weight and may be a bit lacking in terms of depth. It sounds a bit bright and monitored low end. Moderately warm, but not very hot. It may be a little muddy in the lower midrange, but the midrange is clear enough for most songs.



The midrange has a natural warmth to it, almost neutral. The vocals come to the fore and sound lively with just the right amount of nuance, but the body is moderate or slightly less and slightly slimmer and rather clean. The midrange sounds tend to be slightly dry, and the acoustic guitar and piano are rather tight. The snare is also crisp and easy to hear with an emphasis on snappiness.



There is a quietness in the upper midrange and the area around the vocals is fairly clean. Instrumental sounds line up behind the vocals and sound with a sense of depth. There is an emphasis on the metallic sheen, and the instrumental sounds have a bit of hard emphasis and sparkle to the contours of the piano and other instruments, but they are well tuned in the direction of high vocal priority, so the vocals don't get too much of a rush and muddle into the instrumental sounds.



Female vocals sound rather high in the overall sound field, so you may not feel the spatial height of the sound, but you can feel the depth and width. Also, the calming of the ultra-high frequencies gives a sweetness to the midrange sound. The sound image in the midrange is clear and distinct, with a slightly thicker outline. It is a typical DUNU monitor sound that combines naturalness and clarity at an affordable price. The midrange assembly in particular is good and structured.



DUNU Studio SA3 3 BA Drivers In-Ear Earphone 3D Print IEMs HiFiGo



Recording signature

Please refer to the following for the basic principles of recording signatures and how to enjoy them.

www.ear-phone-review.com



The recording signature is posted for advisory. Free sound field adjustment is added. The source is FiiO M15 and the gain is high. The eartips used are the "Standard silicon (Blue) S  size".

blog.ear-phone-review.com



The music used in the recording signature is from the game maker Nippon Falcom, which I love.

www.falcom.co.jp



JAZZ

anchor.fm



OST

anchor.fm



Classical

anchor.fm



Rock

anchor.fm



Final verdict

Comprehensive evaluation: ★★★★★

DUNU's new series is very good quality, both in build quality and sound quality, and they look very well made. I was captivated by the eye-popping blue ear shells that resemble lapis lazuli. The sound quality is close to neutral, especially in the midrange, and the solid, thick sound sounds are appropriately tight and polite, making them an attractive choice for a vocal earphone.
