TOPPING DX7 Pro+: Bluetooth5.1 ES9038PRO Hi-Res Headphone Desktop Decoder Amplifier

TOPPING DX7 Pro+

TOPPING DX7 Pro+

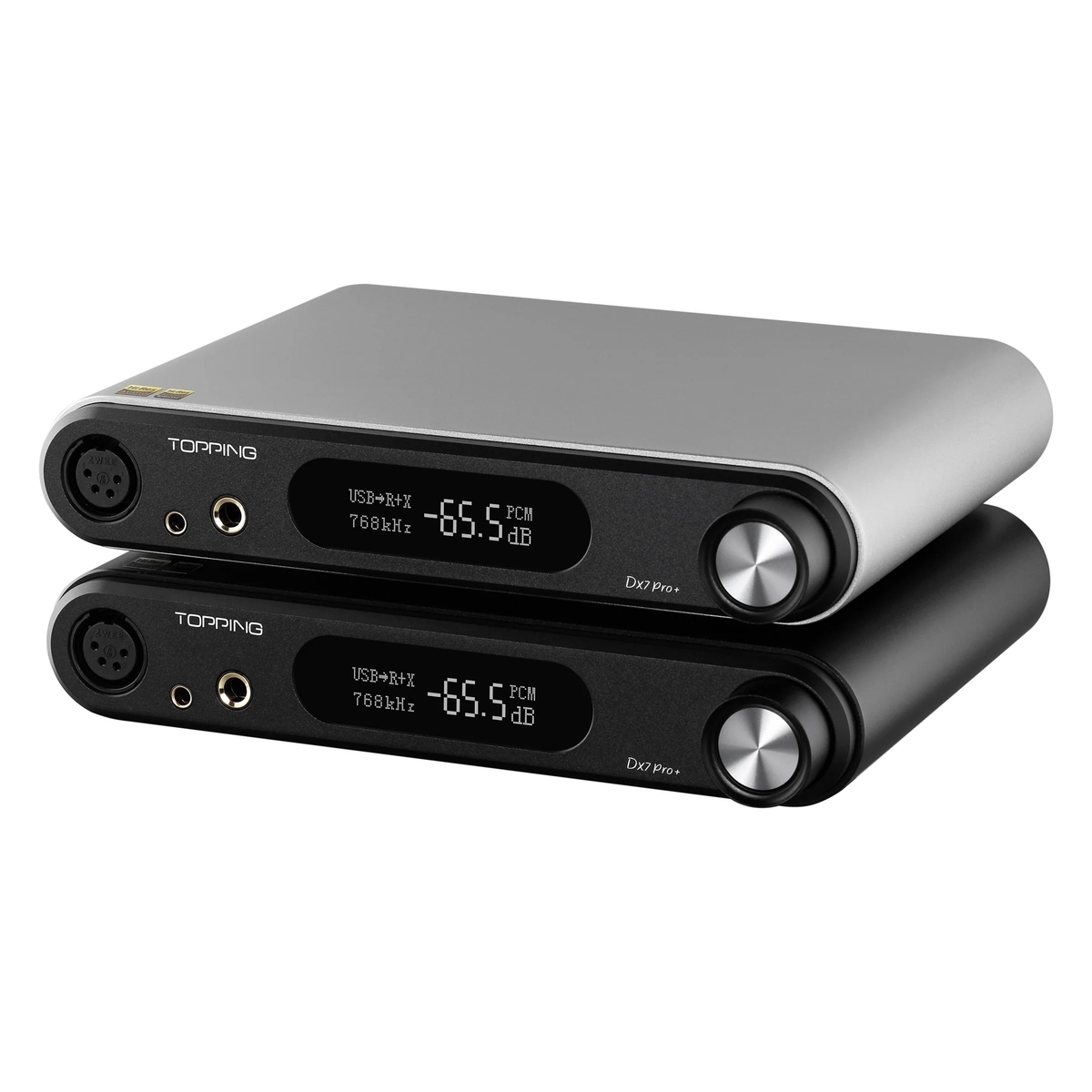

Topping has released the TOPPING DX7 Pro+, an all-in-one desktop headphone amplifier.



Features

  • 4-PIN-XLR, 4.4mm and 6.35mm output jacks
  • Plug and play
  • Flagship DAC chip
  • Brand-new I/V conversion circuit
  • All-new design
  • Built-in NFCA Headphone AMP



Specifications

  • Max playback support
    • USB: 32-bit/768kHz PCM, DSD512 Native, DSD256 (DoP)
    • COAX/OPT/AES IN: 24-bit/192kHz PCM, DSD64 (DoP)
    • IIS IN: 32-bit/768kHz PCM, DSD512 Native, DSD256 (DoP)
    • BT IN: LDAC, AAC, SBC, aptX, aptX LL, aptX HD, aptX Adaptive
  • DAC specs
    • RCA:
      • THD+N @1kHz (A-wt): <0.00008%
      • THD @20-20kHz 90kBW: <0.0008%
      • SNR @ 1kHz (A-wt): 127dB
      • Dynamic range @ 1kHz (A-wt): 127dB
      • Frequency response: 20H-20kHz (±0.1dB), 20Hz-40kHz (±0.3dB)
      • Output level: 2.1Vrms@0dBFS
      • Noise @A-wt: <1.0uVrms
      • Channel crosstalk: -126dB@1kHz
      • Channel balance: 0.3dB
      • Output impedance: 100Ω
    • XLR:
      • THD+N @1kHz (A-wt): <0.00006%
      • THD @20-20kHz 90kBW: <0.0003%
      • SNR @ 1kHz (A-wt): 133dB
      • Dynamic range @ 1kHz (A-wt): 133dB
      • Frequency response: 20H-20kHz (±0.1dB), 20Hz-40kHz (±0.3dB)
      • Output level: 4.2Vrms@0dBFS
      • Noise @A-wt: <1.0uVrms
      • Channel crosstalk: -139dB@1kHz
      • Channel balance: 0.3dB
      • Output impedance: 100Ω
  • Headphone amp specs
    • 6.35mm headphone jack:
      • THD+N @1kHz (A-wt): <0.00009% @150mW (32Ω), <0.00007% @ 15mW (300Ω)
      • THD @20-20kHz 90kBW: <0.0006 @150mW (32Ω), <0.0004% @15mW (300Ω)
      • SNR @max out 1kHz (A-wt): 127dB @1kHz
      • Dynamic range @1kHz (A-wt): 127dB @1kHz
      • Frequency response: 20Hz-20kHz (±0.1dB), 20Hz-40kHz (±0.3dB)
      • Output level: 6.2Vpp (low gain), 27.8Vpp (high gain)
      • Noise @A-wt: <1.4uVrms (low gain), <2.5uVrms (high gain)
      • Channel crosstalk: -120dB @1kHz
      • Gain: 6.9dB (low gain), 20dB (high gain)
      • Channel balance: 0.3dB
      • Output impedance: <0.1Ω
    • Output power:
      • 1900mW x2 @32Ω THD+N<1%
      • 1350mW x2@64Ω THD+N<1%
      • 320mW x2@300Ω THD+N<1%
      • Load impedance: >8Ω



TOPPING DX7 Pro+

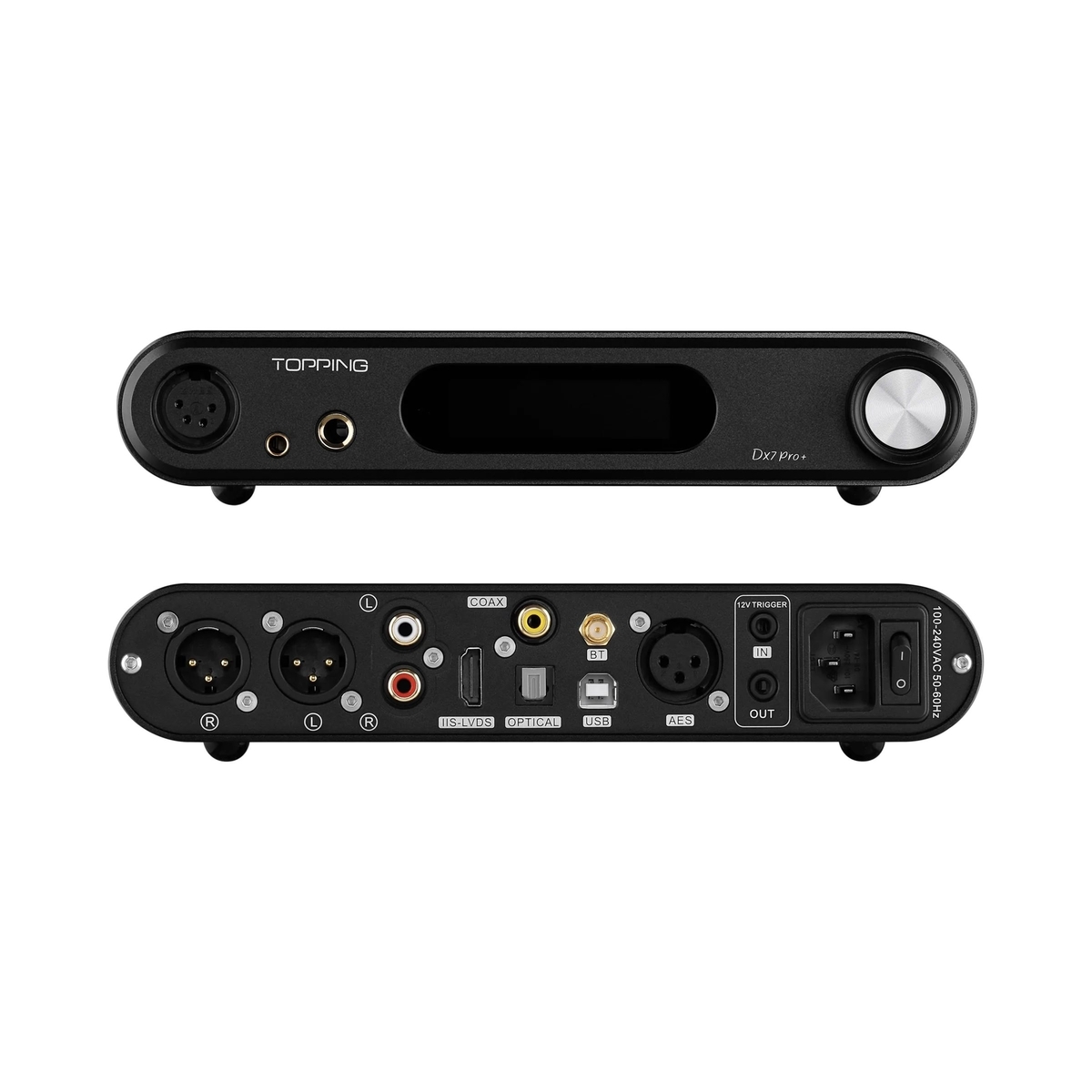

4-PIN-XLR, 4.4mm and 6.35mm output jacks

DX7 Pro+ has 3 output headphone jacks of 4-PIN-XLR, 4.4mm and 6.35mm to meet different usages. Besides, with the help of 2 gain setting, DX7 Pro+ could reach even wider adaption of different headphones.



TOPPING DX7 Pro+
TOPPING DX7 Pro+



Plug and play

DX7 Pro+ has a wide range of compatibility: Windows 10 and above, MAC,Linux, IOS, Android can be plug and play. DX7 Pro+ uses 2nd generation 8 coreXMOS XU208, USB supports up to PCM32bit768kHz and DSD512 native.



Flagship DAC chip

DX7 Pro+ uses ESS SABRE ES9038PRO, with 32bit Hyper-stream architecture, achieves ultra-high performance in the audio field. Each channel of the DX7 Pro+ will be arranged in parallel by 4 conventionall balanced channels. This makes the performance of DX7 Pro+ even better.



Brand-new I/V conversion circuit

TOPPING designed brand-new I/V conversion circuit with better audio reproduction. The unique circuit design provides lower distortion and lower noise while occupying less space.



All-new design

TOPPING has redesigned the DX7 Pro+ inside and out. Not only will it feature TOPPING’s ultra-clean NFCA module and updates to the audio circuit, but the chassis design is based on the Red Dot Award-winning design of the TOPPING DX5. The DX7 Pro+ outpaces its predecessor in category after category. It uses the most up-to-date Bluetooth 5.1 chip with LDAC support. It also has 70% better noise performance, 100% stronger output power, and 99% lower output impedance.



TOPPING DX7 Pro+



Built-in NFCA Headphone AMP

The new DX7 Pro+ has the NFCA circuit optimized for this unit, giving the ultra low noise and distortion. It pairs with high sensitivity IEMs and power hungry high impedance headphones nicely.



Price & Availability

TOPPING DX7 Pro+ is available at Linsoul and other retailers for $699.
