(News) Topping DX3 Pro+: a low-cost, high-quality Bluetooth DAC/AMP

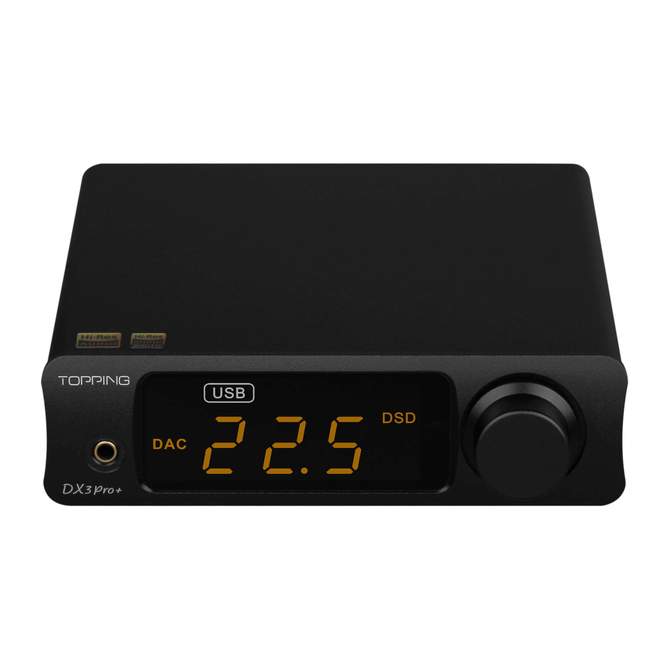

TOPPING DX3 PRO+

TOPPING DX3 PRO+

Topping  is pleased to announce the release of the Topping DX3 Pro+, an upgrade of the Topping DX3 Pro, a multifunctional DAC/AMP that has been well received by the market. The Topping DX3 Pro+ can be used not only as a stand-alone DAC, but also as a preamplifier, with Optical, Coaxial USB, and Bluetooth inputs. It also has a headphone jack, so it can be used as a DAC/AMP for headphones.



TOPPING DX3 PRO+



High sound quality and high output power realized by high quality chips and circuits

The DX3 Pro+ uses an ES9038QM decoding chip and a second-generation 8-core XMOS XU208 USB input. the NFCA circuitry in the DX3 Pro+ has been optimized for improved performance, delivering ultra-low noise, ultra-low distortion, and significantly reduced THD+N compared to conventional LDACs. By significantly reducing the THD+N, it achieves higher output power while maintaining the same functionality.



Topping DX3 Pro+



Broad compatibility

The USB input supports up to 32bit/768kHz PCM and DSD512 native, and the DX3Pro+ also features broad compatibility with Windows 10, MAC, Linux, iOS and Android for plug and play. High-end ASIO applications are also supported, and the DX3 Pro+ offers driver-free connectivity to MAC and Win10 with customized Thesycon ASIO drivers.



Topping DX3 Pro+


The backbone of the audio chain with a variety of output modes

The DX3 Pro+ has four output modes: headphone amp, headphone amp + line out, DAC, and preamp.



Topping DX3 Pro+

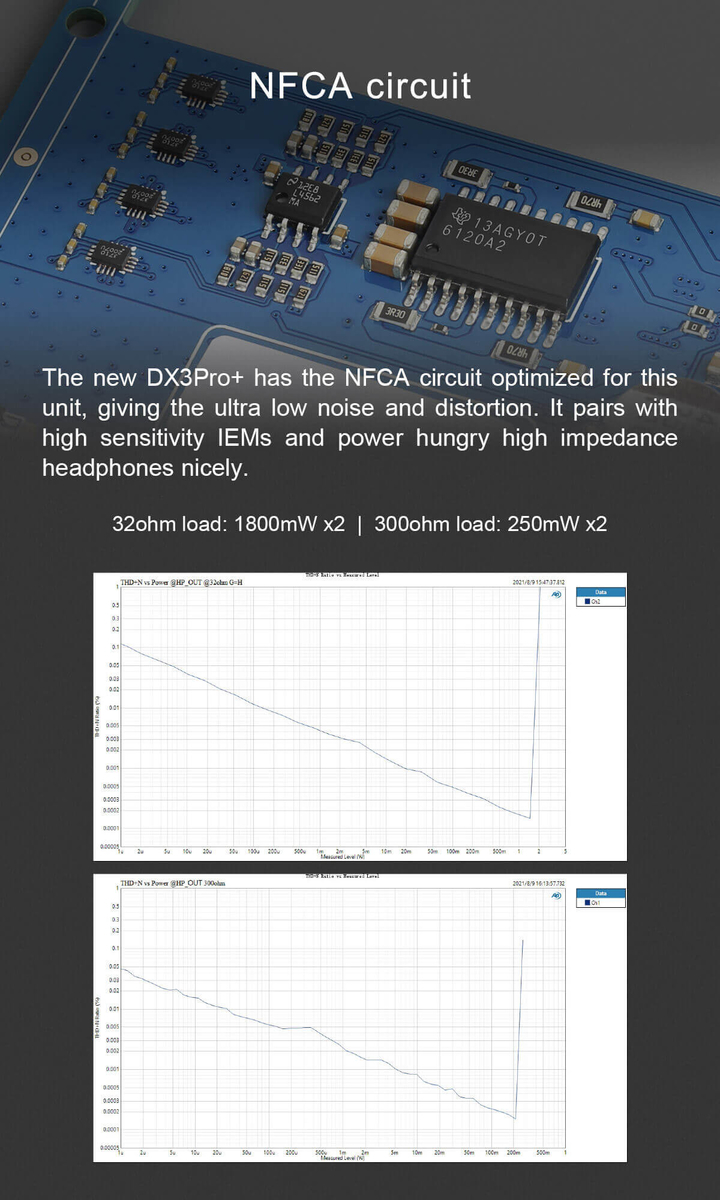

Topping has optimized the Nested Feedback Composite Amplifier (NFCA) circuitry in the DX3 Pro+ to provide superior AC/DC performance. This allows the DX3 Pro+ to handle everything from highly sensitive and delicate IEMs to high-impedance type headphones that require massive amounts of power. In addition, two gain settings are available to provide the best sound quality for your headphones.



Topping DX3 Pro+



Perfect symmetry with PA3S

The DX3 Pro+ and Topping's PA3s power amplifiers are spatially dimensionally aligned and match very well when stacked; when used with the DX3 Pro+, the PA3s' TRS balanced inputs can be used to input other audio sources. Outputs are 80W x 2@4Q, 10% THD+N and 65W x 2@4Q, 1% THD+N.



Topping DX3 Pro+

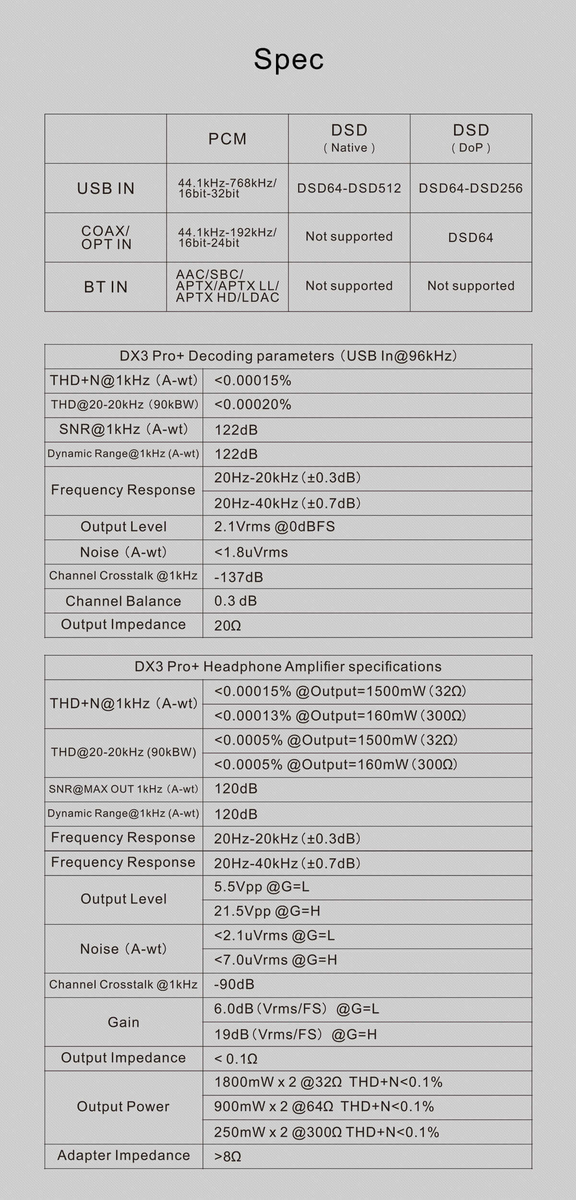

Specifications



size

Topping DX3 Pro+

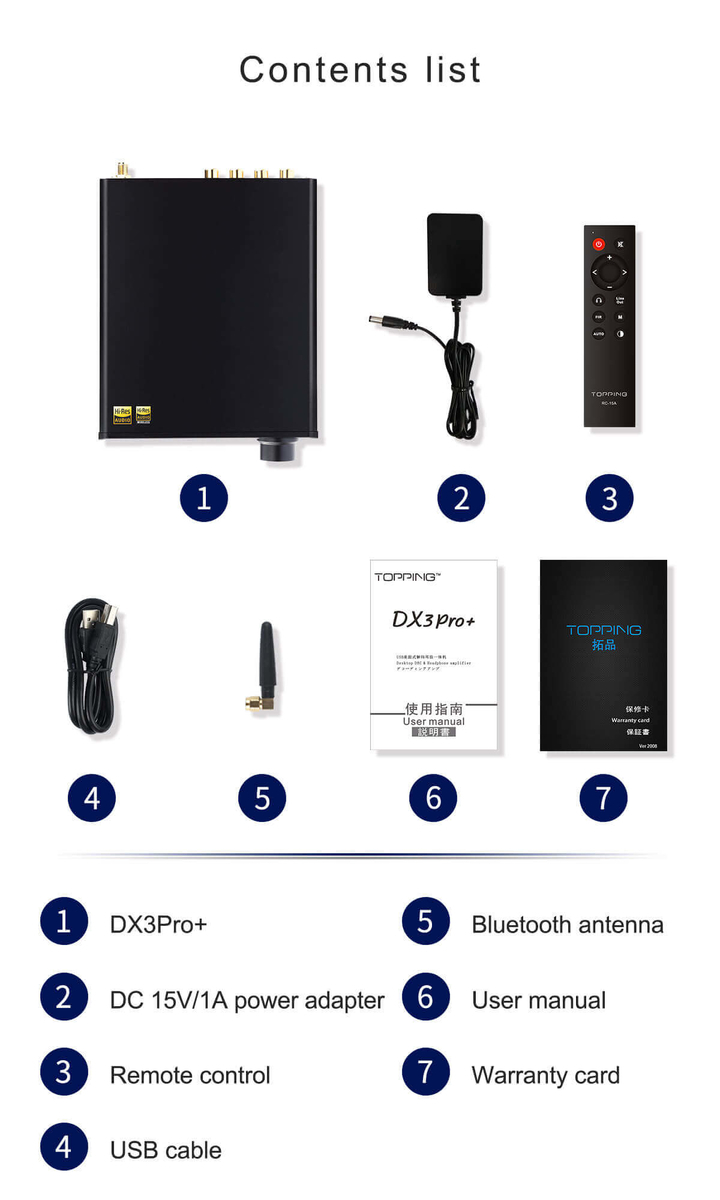

Package Contents

Topping DX3 Pro+



Topping DX3 Pro+

Topping DX3 Pro+

Topping DX3 Pro+

$149.00
